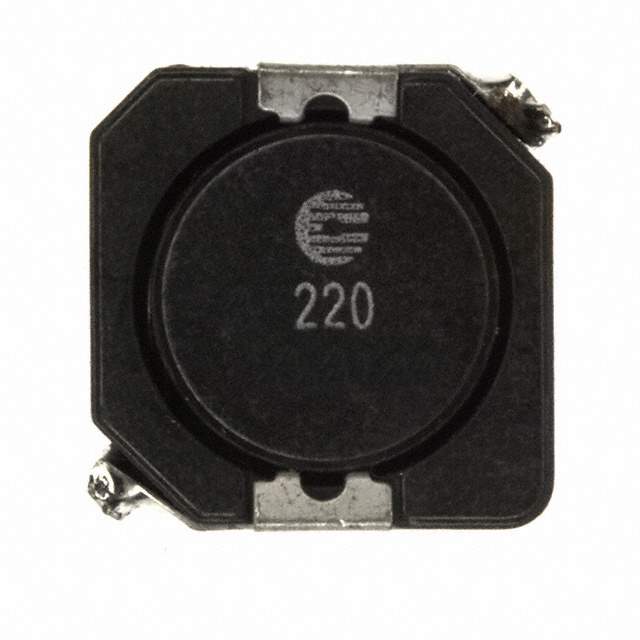

Same model may have multiple batches, images only for reference.

DR1050-220-R

Name: DR1050-220-R
Brand: Eaton Bussmann
SKU: 1327426
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	DR1050-220-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 22UH 3.12A 48.4MOHM SM / 22 µH Shielded Drum Core, Wirewound Inductor 3.12 A 48.4mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Eaton - Electronics Division
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	22 µH
Tolerance	±30%
Current Rating (Amps)	3.12 A
Current - Saturation (Isat)	3A
Shielding	Shielded
DC Resistance (DCR)	48.4mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.413" L x 0.406" W (10.50mm x 10.30mm)
Height - Seated (Max)	0.197" (5.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	513-1417-1,DR1050220R,513-1417-2,513-1417-6
Standard Package	500
Win Source Part Number	1327426-DR1050-220-R
Ultra Librarian 3D Model	Ultra Librarian DR1050-220-R CAD Model

Alternative Products

Description

The Eaton - Electronics Division DR1050-220-R is a drum core, wirewound inductor that is commonly used in electronic devices.

Inductance: 22 μH
Tolerance: ±30%
DC Resistance: 48.4 mΩ max
Current Rating: 3.12 A max
Shielded: Yes
Mounting Type: Surface Mount
