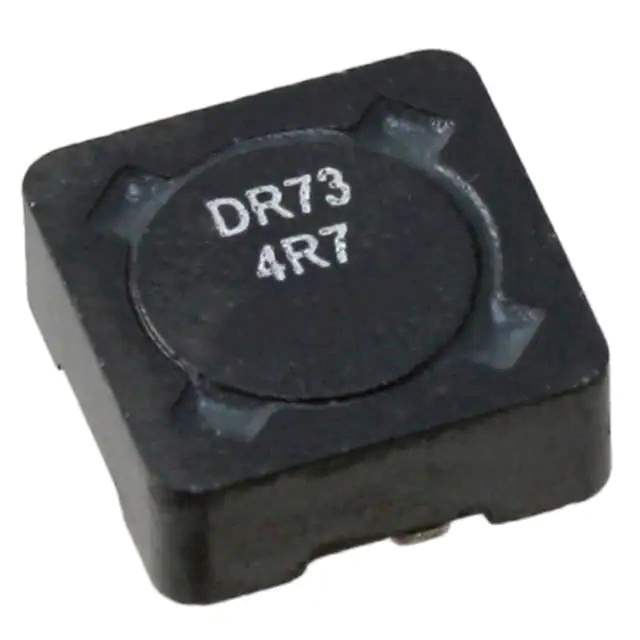

Same model may have multiple batches, images only for reference.

DR73-4R7-R

Name: DR73-4R7-R
Brand: Eaton Bussmann
SKU: 585846
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DR73-4R7-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 4.7UH 3.09A 29.7 MOHM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Eaton Bussmann
Series	DR
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	4.7 µH
Tolerance	±20%
Current Rating (Amps)	3.09 A
Current - Saturation (Isat)	3.78A
Shielding	Shielded
DC Resistance (DCR)	29.7mOhm
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.299" L x 0.299" W (7.60mm x 7.60mm)
Height - Seated (Max)	0.140" (3.55mm)
Standard Package	1,350 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	585846-DR73-4R7-R
Ultra Librarian 3D Model	Ultra Librarian DR73-4R7-R CAD Model

Alternative Products

Description

The DR73-4R7-R is a shielded fixed inductor from Eaton Bussmann.

Series: DR
Core Type: Drum Core, Wirewound
Packaging: Tape & Reel
Size: 0.299" L x 0.299" W (7.60mm x 7.60mm)
Inductance: 4.7µH
Seated Height: 0.140" (3.55mm)
Tolerance: ±20%
DC Resistance (DCR): 29.7mOhm
Operating Temperature: -40°C to 125°C
Status: Active
Applications: Power supplies and filters
