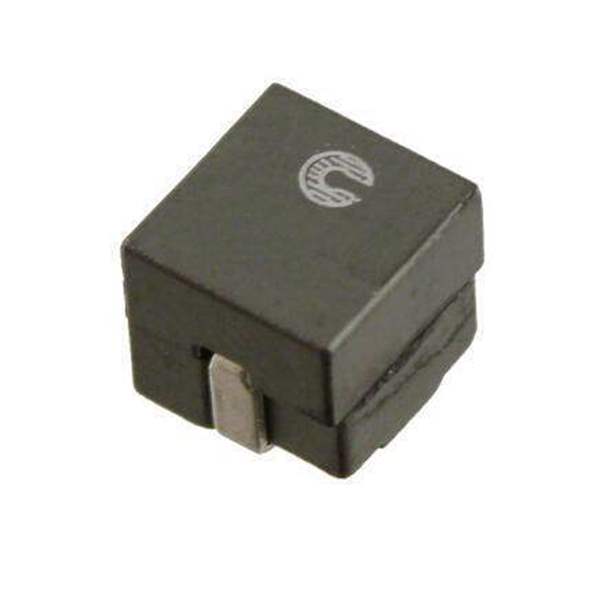

FP0807R1-R07-REaton - Electronics Division
Same model may have multiple batches, images only for reference.

FP0807R1-R07-R

Part No FP0807R1-R07-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 70NH 49A 0.5 MOHM SMD
Datasheet
FP0807R1-R07-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Eaton - Electronics Division
Part Status Active
Type Drum Core, Wirewound
Inductance 70 nH
Tolerance ±10%
Current - Saturation (Isat) 108A
DC Resistance (DCR) 0.5mOhm
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.299" L x 0.291" W (7.60mm x 7.40mm)
Win Source Part Number WS1305694-FP0807R1-R07-R
Ultra Librarian 3D Model Ultra Librarian FP0807R1-R07-R CAD Model

Description

Product description
• High current carrying capacity
• Low core losses
• Inductance range from 70nH to 220nH
• Current range from 35 to 108 amps
• Frequency range up to 2MHz
• 7.4 x 7.6 footprint surface mount package in a 7.0mm height
• Ferrite core material
• Halogen free, lead free, RoHS compliant
