Same model may have multiple batches, images only for reference.

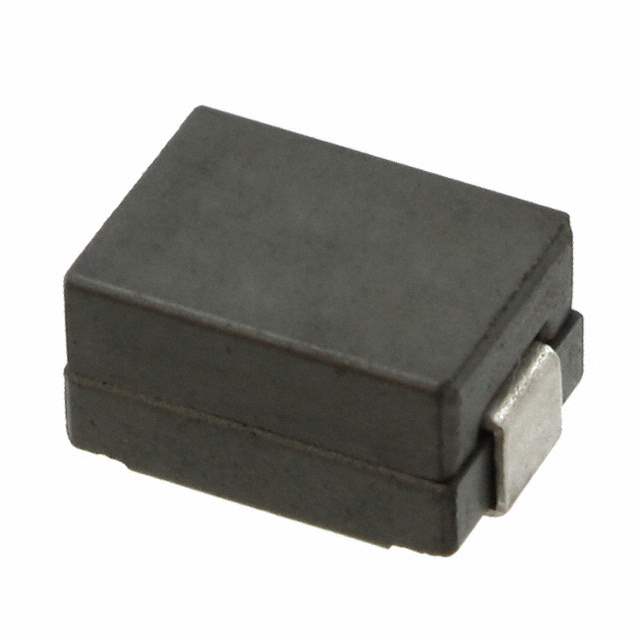

FP4-200-R Real Image
Same model may have multiple batches, images only for reference.

FP4-200-R

Part No FP4-200-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 200NH 40A 0.65 MOHM
Datasheet
FP4-200-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 200nH
Tolerance ±15%
Current Rating 40A
Current - Saturation 30A
DC Resistance (DCR) 0.65 mOhm Max
Temperature Range - Operating -40°C to 155°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.197" (5.00mm)
Win Source Part Number 113114-FP4-200-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FP4-200-R CAD Model

Description

The Eaton Bussmann 113114-FP4-200-R is a wirewound type inductor with a current rating of 40A and an inductance of 200nH. It has a height of 0.197" (5.00mm) when seated and is mounted using SMD (SMT) technology. The tolerance of this product is ±15% and the core material is ferrite. The current saturation is 30A and the DC resistance (DCR) is 0.65 mOhm Max. This product has a medium popularity and a balance supply and demand status.
