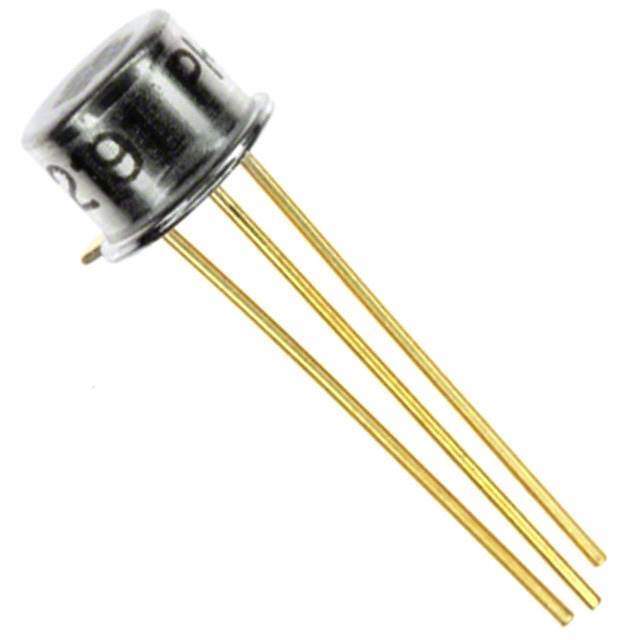

The AD580LH from Analog Devices Inc. is a high precision, low drift, micropower voltage reference in a hermetically sealed package. This integrated circuit (IC) is designed to offer a stable and precise 2.5V output voltage with a tight initial tolerance of ±0.4% and a temperature coefficient as low as 10 ppm/°C over the full military temperature range.

Key Features

• Output Voltage: Fixed 2.5V with high accuracy
• Temperature Stability: Excellent performance with a temperature coefficient of 10 ppm/°C
• Voltage Tolerance: Tight initial tolerance of ±0.4%
• Package: Reliable hermetically sealed package for enhanced durability
• Power Supply Range: Wide operating range from 4.5V to 30V
• Low Quiescent Current: Suitable for battery-powered applications with a quiescent current of 1mA
• Load Regulation: Superior load regulation characteristics

Applications

The AD580LH is an ideal component for precision data systems, analog-to-digital converters (ADCs), digital-to-analog converters (DACs), and other high-accuracy analog circuitry. Its stable voltage reference is crucial for applications in:

• Instrumentation
• Industrial Process Control Systems
• Precision Data Acquisition Systems
• Portable Battery-Powered Devices
• High-end Audio Equipment

Product Specifications

With its robust feature set and high level of performance, the AD580LH voltage reference from Analog Devices Inc. is a reliable choice for professionals seeking consistency and accuracy in their electronic designs.
