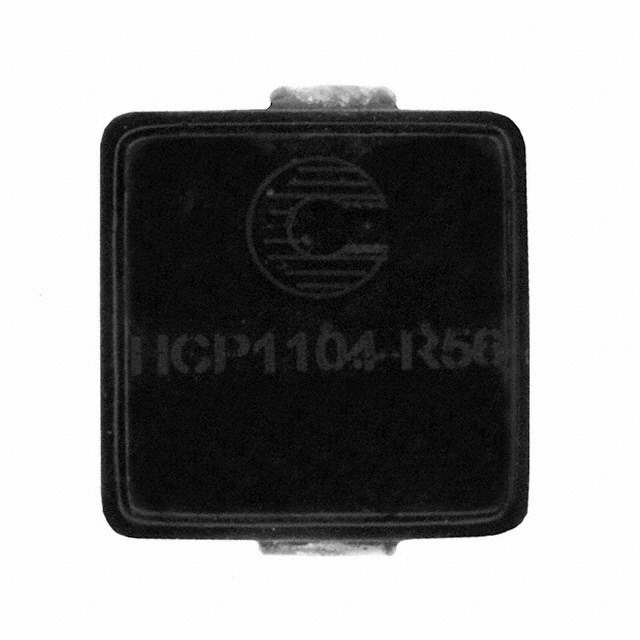

Same model may have multiple batches, images only for reference.

HCP1104-R56-R

Name: HCP1104-R56-R
Brand: Eaton Bussmann
SKU: 141740
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	HCP1104-R56-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 560NH 25A 1.8 MOHM SMD
Datasheet	HCP1104-R56-R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Eaton Bussmann
Packaging	Reel - TR
Status	Obsolete(EOL)
Type	Wirewound
Material - Core	Powdered Iron
Inductance	560nH
Tolerance	±20%
Current Rating	25A
Current - Saturation	32A
DC Resistance (DCR)	1.8 mOhm Max
Temperature Range - Operating	-55°C to 125°C
Frequency - Test	100kHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.157" (4.00mm)
Win Source Part Number	105125-HCP1104-R56-R
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian HCP1104-R56-R CAD Model

Alternative Products

Description

The HCP1104-R56-R is a wirewound inductor that has an inductance of 560nH with a tolerance of ±20%. This inductor has a current rating of 25A with a saturation current of 32A. The HCP1104-R56-R has a height of 0.157" (4.00mm) and a DC resistance of 1.8 mOhm Max. It is designed to operate in a temperature range of -55°C to 125°C and has a frequency test of 100kHz. The HCP1104-R56-R is packaged in reel - TR and is an obsolete (EOL) product.
