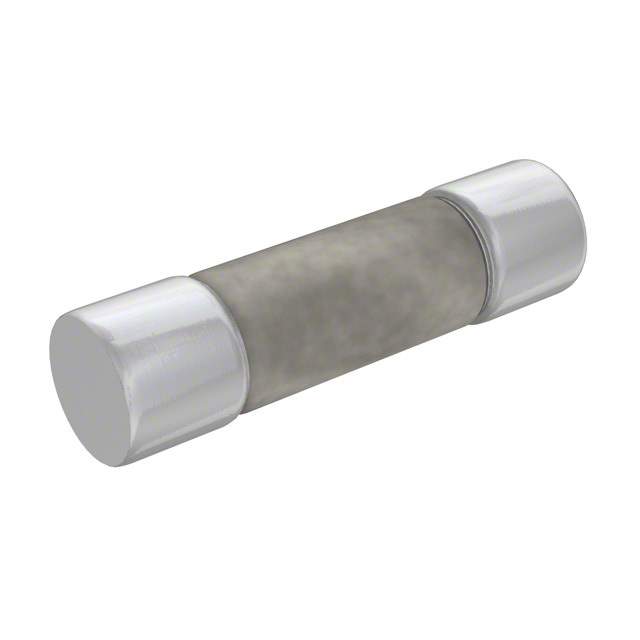

KLM-20 Real Image
Same model may have multiple batches, images only for reference.

KLM-20

Part No KLM-20
Manufacturer Eaton Bussmann
Catalog Electrical, Specialty Fuses
Description FUSE CRTRDGE 20A 600VAC/VDC 5AG / 20A 600 V AC 600 V DC Fuse Cartridge Holder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Electrical, Specialty Fuses
Manufacturer Eaton - Bussmann Electrical Division
Packaging Bulk
Mounting Holder
Fuse Type Cartridge
Current Rating (Amps) 20A
Voltage Rating - AC 600 V
Voltage Rating - DC 600 V
Response Time Fast Blow
Applications Electrical, Industrial
Approval Agency CE, CSA, UL
Breaking Capacity @ Rated Voltage 100kA AC, 50kA DC
Case / Package 5AG, 10mm x 38mm (Midget)
Size / Dimension 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Part Number KLM-20-ND,KLM20,283-3101
Standard Package 10
Win Source Part Number 1334886-KLM-20
Ultra Librarian 3D Model Ultra Librarian KLM-20 CAD Model

Description

The Eaton - Bussmann Electrical Division 1334886-KLM-20 is a fast-acting cartridge fuse suitable for electrical and industrial applications.

  • Voltage Rating - AC: 600V
  • Voltage Rating - DC: 600V
  • Breaking Capacity @ Rated Voltage: 100kA AC, 50kA DC
  • Current Rating: 20A
  • RoHS Compliant: Yes
  • Case / Package: 5AG, 10mm x 38mm (Midget)
  • Mounting Type: Holder
  • Approval Agencies: CE, CSA, UL
  • Response Time: Fast Blow
  • Packaging: Bulk
  • Standard Package: 10
