Same model may have multiple batches, images only for reference.

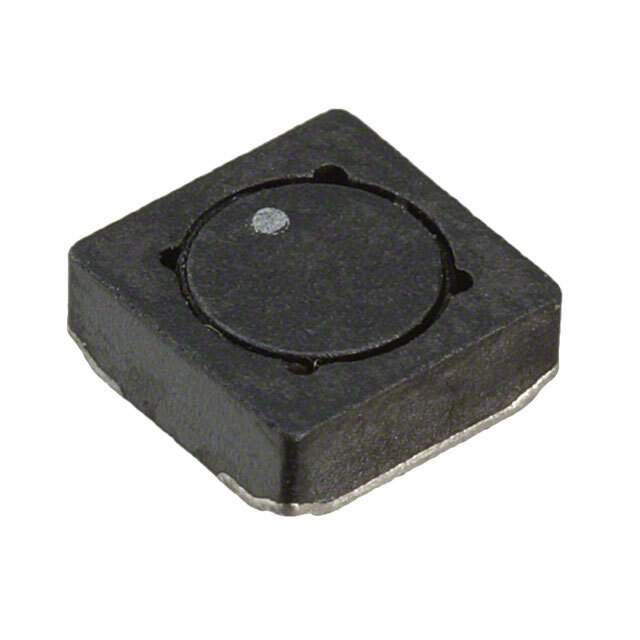

SD20-680-R Real Image
Same model may have multiple batches, images only for reference.

SD20-680-R

Part No SD20-680-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 68UH 610MA 694.7 MOHM
Datasheet
SD20-680-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 68μH
Tolerance ±20%
Current Rating 610mA
Current - Saturation 337mA
DC Resistance (DCR) 694.7 mOhm
Temperature Range - Operating -40°C to 85°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 125333-SD20-680-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SD20-680-R CAD Model

Description

The Eaton Bussmann 125333-SD20-680-R wirewound inductor is designed to provide high inductance and current rating for various electronic applications.

  • Current Rating: 610mA
  • Inductance: 68μH
  • Material-Core: ferrite material-core
  • DC Resistance: 694.7 mOhm
  • Tolerance: ±20%
  • Temperature Range: -40°C to 85°C
  • Height: 0.079" (2.00mm)
  • Mounting: SMD (SMT)
