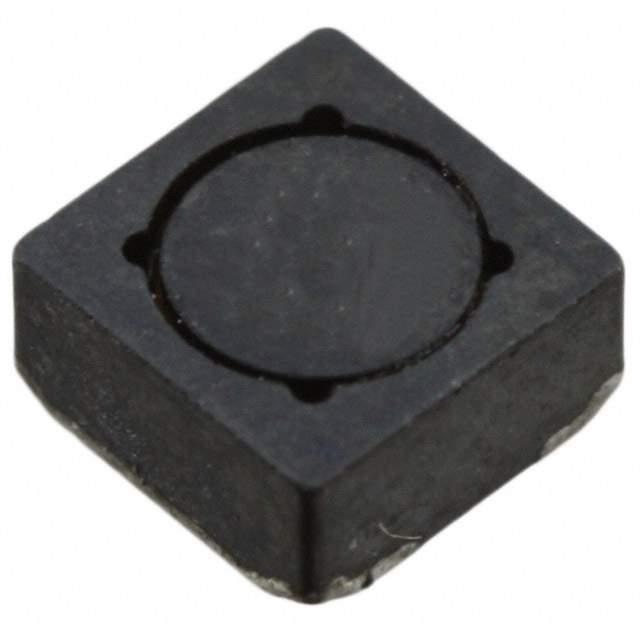

Same model may have multiple batches, images only for reference.

SD25-100-R

Name: SD25-100-R
Brand: Eaton Bussmann
SKU: 1383407
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	SD25-100-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 10UH 1.8A 82.4MOHM SMD / 10 µH Shielded Drum Core, Wirewound Inductor 1.8 A 82.4mOhm Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Eaton Bussmann
Series	SD
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	10 µH
Tolerance	±20%
Current Rating (Amps)	1.8 A
Current - Saturation (Isat)	1.27A
Shielding	Shielded
DC Resistance (DCR)	82.4mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Temperature Range - Operating	-40°C ~ 85°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.205" L x 0.205" W (5.20mm x 5.20mm)
Height - Seated (Max)	0.098" (2.50mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Standard Package	2,900 pcs
Win Source Part Number	1383407-SD25-100-R
Ultra Librarian 3D Model	Ultra Librarian SD25-100-R CAD Model

Alternative Products

Description

The 1383407-SD25-100-R is a fixed inductor with a drum core and wirewound construction and manufactured by Eaton Bussmann.

Size / Dimension: 0.205" L x 0.205" W (5.20mm x 5.20mm)
Height: 0.098" (2.50mm)
Inductance: 10µH
Tolerance: ±20%
Shielding: Shielded
Mounting Type: Surface Mount
Package: Tape & Reel (TR)
DC Resistance (DCR): 82.4mOhm
Current: 1.8A
Operating Temperature: -40°C ~ 85°C
