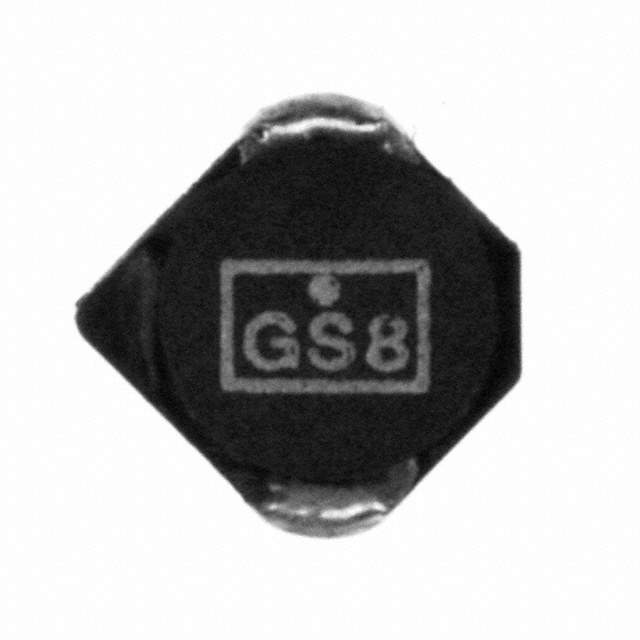

SD3814-221-R Real Image
Same model may have multiple batches, images only for reference.

SD3814-221-R

Part No SD3814-221-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 220UH 170MA 5.48 OHM
Datasheet
SD3814-221-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Material - Core Ferrite
Inductance 220μH
Tolerance ±15%
Current Rating 170mA
Current - Saturation 181mA
DC Resistance (DCR) 5.48 Ohm
Temperature Range - Operating -40°C to 85°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.055" (1.40mm)
Win Source Part Number 1094999-SD3814-221-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SD3814-221-R CAD Model

Description

The 473603 is a wirewound type electronic component designed for inductance applications and manufactured by Eaton.

  • Current Rating: 170mA
  • Inductance: 220μH
  • Package: Reel - TR
  • Mounting Type: SMD (SMT)
  • Tolerance: ±15%
  • Core Material: Ferrite
  • DC Resistance (DCR): 5.48 Ohm
  • Height - Seated (Max): 0.055" (1.40mm)
  • Current - Saturation: 181mA
  • Frequency - Test: 100kHz
  • Status: Obsolete(EOL)
  • Temperature Range: -40°C to 85°C
  • Supply and Demand: Balanced
