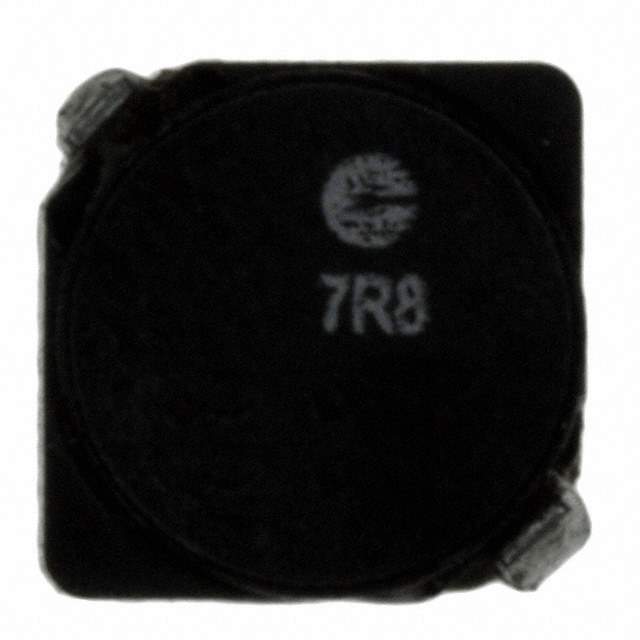

SD6030-7R8-R Real Image
Same model may have multiple batches, images only for reference.

SD6030-7R8-R

Part No SD6030-7R8-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 7.8UH 2.38A 53MOHM SMD / 7.8 µH Shielded Drum Core, Wirewound Inductor 2.38 A 53mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton - Electronics Division
Series SD6030
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 7.8 µH
Tolerance ±30%
Current Rating (Amps) 2.38 A
Current - Saturation (Isat) 1.6A
Shielding Shielded
DC Resistance (DCR) 53mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names SD60307R8R,513-1474-6,513-1474-1,513-1474-2
Standard Package 2,000
Win Source Part Number 1152636-SD6030-7R8-R
Ultra Librarian 3D Model Ultra Librarian SD6030-7R8-R CAD Model

Description

The SD6030-7R8-R is a fixed inductor that belongs to the Inductors, Coils, Chokes category and is manufactured by Eaton - Electronics Division.

  • Inductance: 7.8 µH
  • Tolerance: ±30%
  • DC Resistance: 53 mOhm (Max)
  • Current Rating: 2.38 A
  • Operating Temperature: -40°C to 125°C
  • Package Size: 0.236" L x 0.236" W (6.00mm x 6.00mm)
  • Mounting: SMD (SMT)
  • Shielded: Yes
  • Packaging: Tape and Reel
  • Standard Package: 2,000
