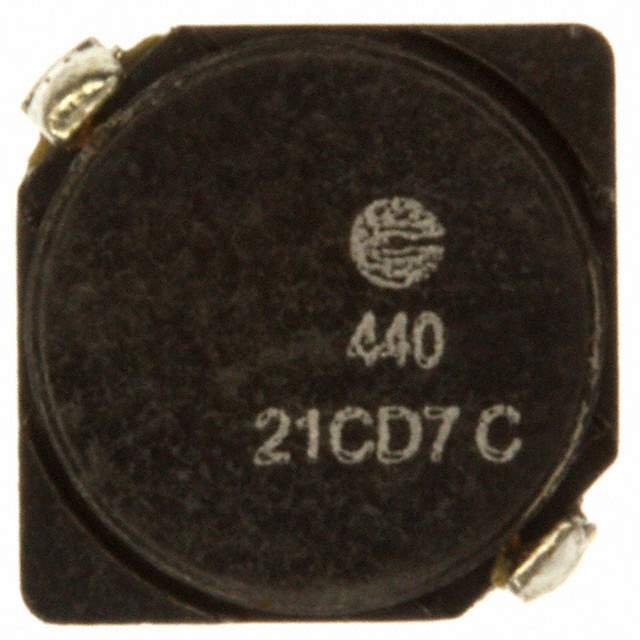

SD7030-440-R Real Image
Same model may have multiple batches, images only for reference.

SD7030-440-R

Part No SD7030-440-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 43.4UH 1.1A 238MOHM SM / 43.4 µH Shielded Drum Core, Wirewound Inductor 1.1 A 238mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton - Electronics Division
Series SD7030
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 43.4 µH
Tolerance ±30%
Current Rating (Amps) 1.1 A
Current - Saturation (Isat) 800mA
Shielding Shielded
DC Resistance (DCR) 238mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names SD7030440R,513-1487-6,513-1487-1,513-1487-2
Standard Package 1,500
Win Source Part Number 989149-SD7030-440-R
Ultra Librarian 3D Model Ultra Librarian SD7030-440-R CAD Model

Description

The Eaton - Electronics Division SD7030-440-R is a shielded drum core, wirewound inductor designed for use in fixed inductors.

  • Inductor Type: Fixed
  • Shielding: Shielded Drum Core
  • Inductance: 43.4 µH
  • Height: 0.118" (3.00mm)
  • Tolerance: ±30%
  • DC Resistance: 238mOhm Max
  • Current Rating: 1.1A
  • Mounting Style: SMD (SMT)
  • Package/Case: Nonstandard
  • Temperature Range: -40°C to 125°C
  • Manufacturer: Eaton - Electronics Division
