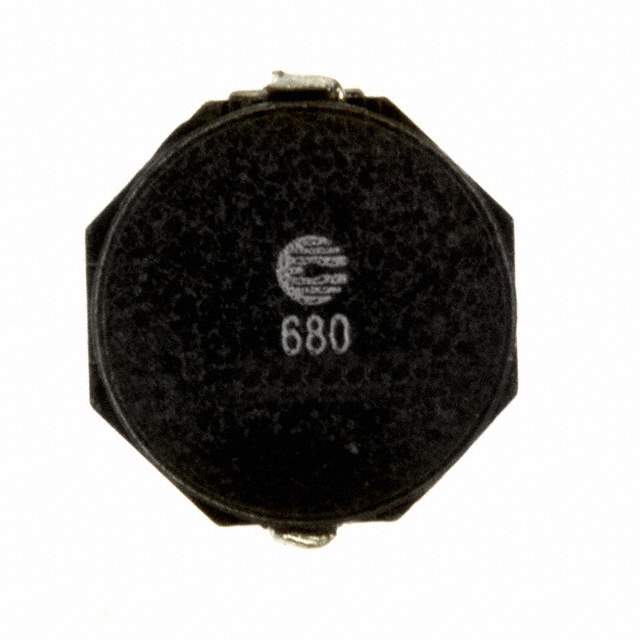

The SD8350-680-R is a surface mount power inductor manufactured by Eaton Bussmann. It is designed for use in a variety of power applications, including DC-DC converters, power supplies, and filters. This inductor features a shielded construction to minimize electromagnetic interference (EMI) and a high current carrying capacity.

Applications:

• DC-DC converters
• Power supplies
• EMI filters
• Buck, boost, and buck-boost converters
• Voltage regulators

Features:

• Inductance: 68 μH
• Tolerance: ±20%
• Saturation Current: Varies based on specific conditions; check datasheet
• Shielded Construction
• Surface Mount Design
• RoHS Compliant

Benefits:

• Low EMI: The shielded construction minimizes electromagnetic interference, making it suitable for sensitive applications.
• High Current Carrying Capacity: Designed to handle significant current levels, improving efficiency in power circuits.
• Compact Size: Surface mount design allows for efficient use of PCB space.
• Robust Construction: Provides reliable performance in demanding environments.
• RoHS Compliance: Meets environmental regulations for lead-free manufacturing.

The SD8350-680-R inductor is built with a ferrite core and a copper winding. The shielded construction encases the inductor core and windings, minimizing radiated emissions. The surface mount terminals are designed for easy soldering to the PCB. This inductor is suitable for a wide range of power applications where low EMI and high current handling are important. Always refer to the manufacturer's datasheet for specific performance characteristics and application guidelines, including saturation current ratings at different operating temperatures.
