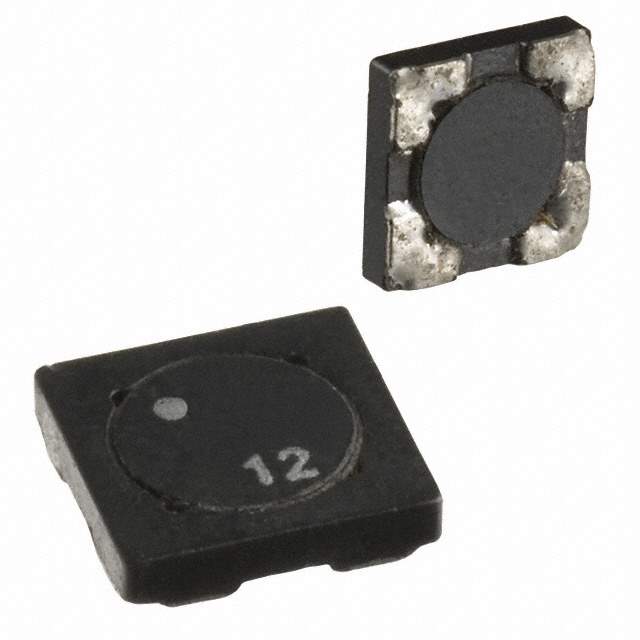

SDQ12-2R2-R Real Image
Same model may have multiple batches, images only for reference.

SDQ12-2R2-R

Part No SDQ12-2R2-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 2.25UH SMD  /  Shielded 2 Coil Inductor Array 9 µH Inductance - Connected in Series 2.25 µH Inductance - Connected in Parallel 97.7mOhm DC Resistance (DCR) - Parallel 1.6 A Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Eaton - Electronics Division
Series SDQ
Package Tape & Reel (TR)
Number of Coils 2
Inductance - Connected In Parallel 2.25 µH
Inductance - Connected In Series 9 µH
Tolerance ±20%
Current Rating - Parallel 1.6 A
Current Rating - Series 800 mA
Current Saturation - Parallel 2.03 A
Current Saturation - Series 1.01 A
DC Resistance (DCR) - Parallel 97.7mOhm
DC Resistance (DCR) - Series 390.8mOhm
Shielding Shielded
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.205" L x 0.205" W (5.20mm x 5.20mm)
Height 0.047" (1.19mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 3,800
Win Source Part Number 1170429-SDQ12-2R2-R
Ultra Librarian 3D Model Ultra Librarian SDQ12-2R2-R CAD Model

Description

The Eaton - Electronics Division 1170429-SDQ12-2R2-R is a surface mount electronic component with a package of Tape & Reel (TR).

  • Category: Inductors, Coils, Chokes>Arrays, Signal Transformers
  • Package/Case: nonstandard
  • Tolerance: ±20%
  • Height: 0.047" (1.19mm)
  • Standard Package: 3,800
  • ECCN: EAR99
  • Manufacturer: Eaton - Electronics Division
