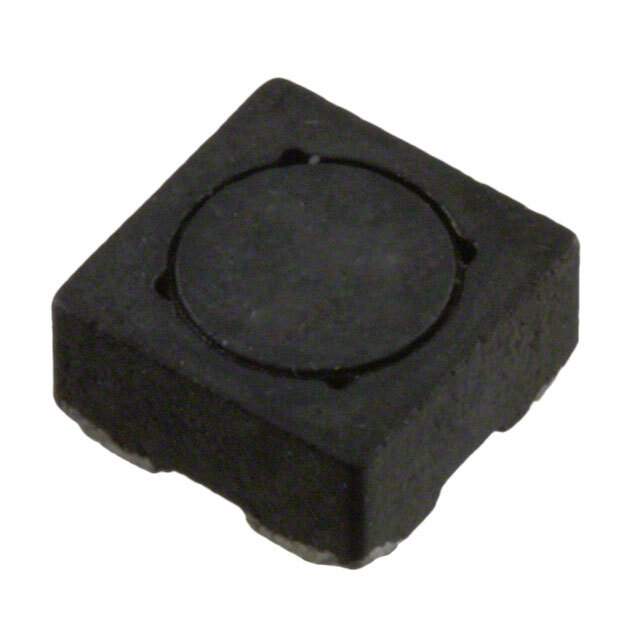

SDQ25-220-R Real Image
Same model may have multiple batches, images only for reference.

SDQ25-220-R

Part No SDQ25-220-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 22.47UH SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Estimated Pruduction Lead Time 15 Weeks
Features Shielded 2 Coil Inductor Array 89.89 µH Inductance - Connected in Series 22.47 µH Inductance - Connected in Parallel 243.1mOhm DC Resistance (DCR) - Parallel 1.01 A Nonstandard
Manufacturer Eaton Bussmann
Series SDQ
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package Nonstandard
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number SDQ25-220-R-ND, 283-4244-2, 283-4244-1, 283-4244-6
Quantity per package 2900
Popularity High
Supply and Demand Status Balance
Win Source Part Number 894016-SDQ25-220-R
Ultra Librarian 3D Model Ultra Librarian SDQ25-220-R CAD Model

Description

The Eaton Bussmann 894016-SDQ25-220-R is a shielded 2 coil inductor array with 89.89 µH inductance when connected in series and 22.47 µH inductance when connected in parallel.

  • Inductance (Series): 89.89 µH
  • Inductance (Parallel): 22.47 µH
  • DC Resistance (DCR) Parallel: 243.1mOhm
  • Current: 1.01 A nonstandard
  • Supply and demand status: balanced
  • Packaging: reel - TR
  • Quantity per package: 2900
  • Estimated Production Lead Time: 15 weeks
  • MSL level: 1 (Unlimited)
  • HTSUS: 8504.50.4000
  • Other part numbers: SDQ25-220-R-ND, 283-4244-2, 283-4244-1, 283-4244-6
