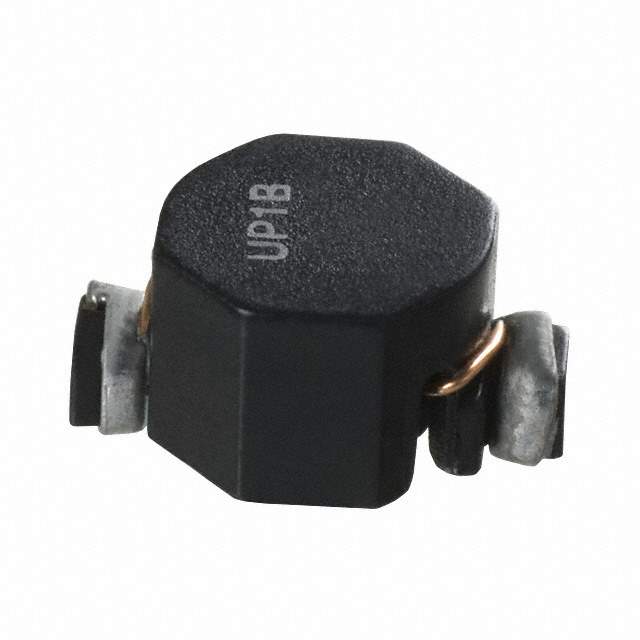

Same model may have multiple batches, images only for reference.

UP1B-221-R

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UP1B-221-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 220UH 360MA 1.96OHM SM / 220 µH Unshielded Drum Core, Wirewound Inductor 360 mA 1.96Ohm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Eaton - Electronics Division
Series	UNI-PAC™
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	220 µH
Tolerance	±20%
Current Rating (Amps)	360 mA
Current - Saturation (Isat)	380mA
Shielding	Unshielded
DC Resistance (DCR)	1.96Ohm Max
Temperature Range - Operating	-40°C ~ 85°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.350" L x 0.240" W (8.89mm x 6.10mm)
Height - Seated (Max)	0.197" (5.00mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	UP1B221R,UP1B-221-ND,513-1070-6,UP1B-221,513-1070-2,513-1070-1
Standard Package	900
Win Source Part Number	1004268-UP1B-221-R
Ultra Librarian 3D Model	Ultra Librarian UP1B-221-R CAD Model

Alternative Products

Description

The UNI-PAC™ series drum core, wirewound inductor is a high-quality component from Eaton - Electronics Division.

Shielded: Unshielded
Inductance: 220 µH
Maximum DC Resistance: 1.96 Ohm
Mounting Type: SMD (SMT)
Package: Tape & Reel
Core Material: Ferrite
Tolerance: ±20%
Operating Temperature: -40°C to 85°C
Dimensions: 0.350" L x 0.240" W (8.89mm x 6.10mm)
Market Status: Open Market
Current Rating: 360 mA
Inductance Frequency Test: 100 kHz
Package/Case: Nonstandard
