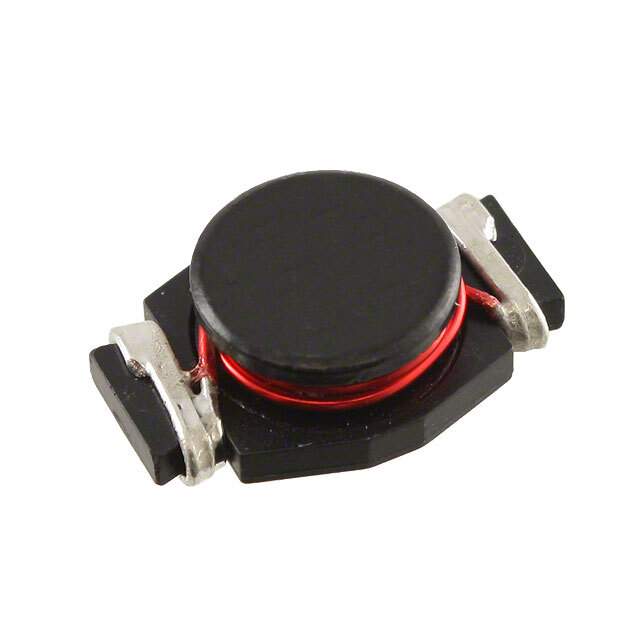

UP4B-100-R Real Image
Same model may have multiple batches, images only for reference.

UP4B-100-R

Part No UP4B-100-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 10UH 6.8A 15 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Estimated Pruduction Lead Time 17 Weeks
Features Unshielded Wirewound Inductor 15mOhm Max Nonstandard
Manufacturer Eaton Bussmann
Series UNI-PAC™
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount
Package Nonstandard
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number UP4B-100-ND, UP4B100R, UP4B-100, 513-1694-2, 513-1694-1, UP4B-100-R-ND, 513-1694-6
Quantity per package 275
Popularity High
Supply and Demand Status Balance
Win Source Part Number 902049-UP4B-100-R
Ultra Librarian 3D Model Ultra Librarian UP4B-100-R CAD Model

Description

The UP4B-100-R is an unshielded wirewound inductor from Eaton Bussmann.

  • Series: UNI-PAC™
  • Operating Temperature Range: -40°C ~ 85°C
  • Package: Nonstandard
  • Mounting: Surface mount
  • Category: Inductors
  • ECCN: EAR99
  • Supply and Demand Status: Balance
  • Quantity per Package: 275
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 17 weeks
  • HTSUS: 8504.50.4000
  • Other Part Numbers: UP4B-100-ND, UP4B100R, UP4B-100, 513-1694-2, 513-1694-1, UP4B-100-R-ND, 513-1694-6
