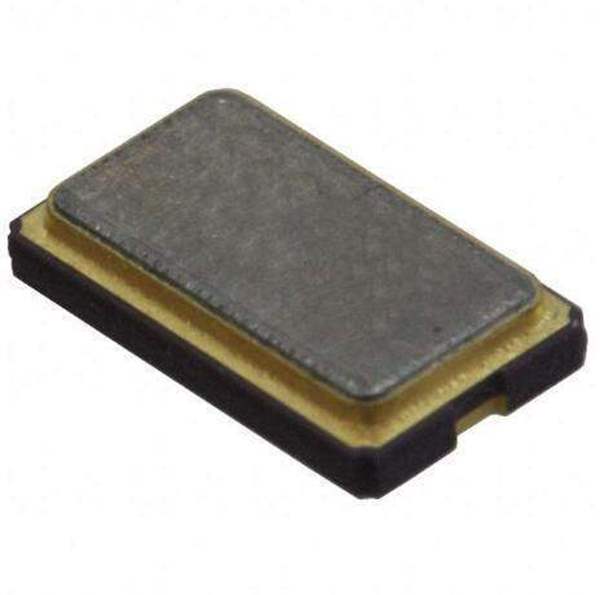

ECS-120-18-23A-EN-TRECS Inc.
Same model may have multiple batches, images only for reference.

ECS-120-18-23A-EN-TR

Part No ECS-120-18-23A-EN-TR
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 12.0000MHZ 18PF SMD
Datasheet
ECS-120-18-23A-EN-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer ECS Inc.
Category Crystals, Oscillators, Resonators Crystals
Part Status Active
Type MHz Crystal
Frequency 12 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Size / Dimension 0.236" L x 0.138" W (6.00mm x 3.50mm)
Win Source Part Number WS1211033-ECS-120-18-23A-EN-TR
Ultra Librarian 3D Model Ultra Librarian ECS-120-18-23A-EN-TR CAD Model

Description

12 MHz ±30ppm Crystal 18pF 80 Ohms 2-SMD, No Lead
