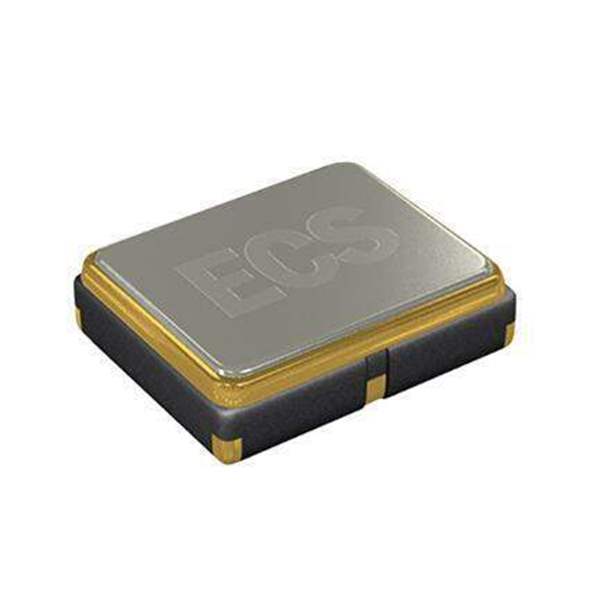

ECS-2520SMV-100-FP-TRECS Inc.
Same model may have multiple batches, images only for reference.

ECS-2520SMV-100-FP-TR

Part No ECS-2520SMV-100-FP-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description XTAL OSC XO 10MHZ HCMOS SMD
Datasheet
ECS-2520SMV-100-FP-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer ECS Inc.
Category Crystals, Oscillators, Resonators Oscillators
Part Status Active
Frequency 10 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 1.62V ~ 3.63V
Frequency Stability ±10ppm
Operating Temperature -40°C ~ 105°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Win Source Part Number WS1211030-ECS-2520SMV-100-FP-TR
Ultra Librarian 3D Model Ultra Librarian ECS-2520SMV-100-FP-TR CAD Model

Description

10 MHz XO (Standard) HCMOS Oscillator 1.62V ~ 3.63V Enable/Disable 4-SMD, No Lead
