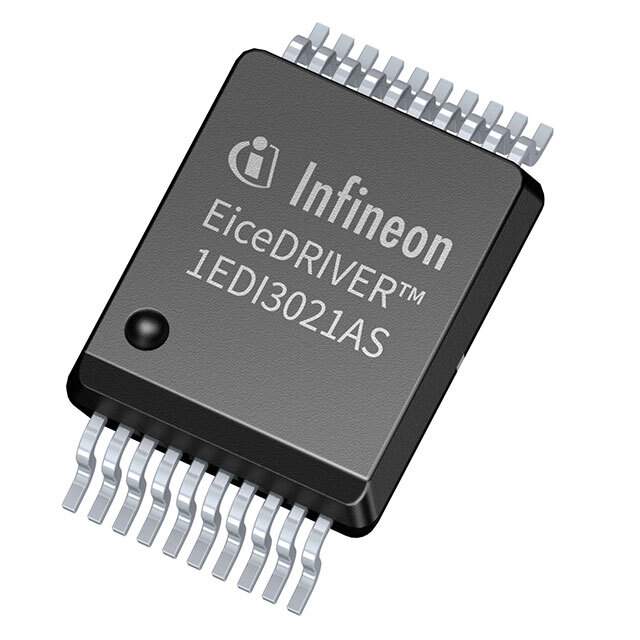

1EDI3021ASXUMA1 Real Image
Same model may have multiple batches, images only for reference.

1EDI3021ASXUMA1

Part No 1EDI3021ASXUMA1
Manufacturer Infineon Technologies
Catalog Isolators - Gate Drivers
Description ISOLATED_HVGD PG-DSO-20 / 12A Gate Driver 5700Vrms 1 Channel PG-DSO-20-91
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Isolators - Gate Drivers
Mfr Infineon Technologies
Series Automotive, AEC-Q100, EiceDriver™
Package Tape & Reel
Number of Channels 1
Voltage - Isolation 5700Vrms
Common Mode Transient Immunity (Min) 150kV/µs
Propagation Delay tpLH / tpHL (Max) 120ns, 120ns
Pulse Width Distortion (Max) 20ns
Rise / Fall Time (Typ) 55ns, 45ns (Max)
Current - Output High, Low 20A, 20A
Current - Peak Output 12A
Voltage - Output Supply 3V ~ 5.5V
Temperature Range - Operating -40°C ~ 150°C
Mounting Type Surface Mount
Package / Case 20-BFSOP (0.295", 7.50mm Width)
Supplier Device Package PG-DSO-20-91
Approval Agency UL, VDE
Base Product Number 1EDI3021
Standard Package 1,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1351646-1EDI3021ASXUMA1
Ultra Librarian 3D Model Ultra Librarian 1EDI3021ASXUMA1 CAD Model

Description

The Infineon Technologies 1351646-1EDI3021ASXUMA1 is a high-quality isolator designed for use in a wide range of electronic devices.

  • Manufacturer: Infineon Technologies
  • Series: EiceDriver™
  • Application: Automotive
  • Number of Channels: 1
  • Voltage Isolation: 5700Vrms
  • Package: Tape and Reel
  • Standard Package: 1,000
  • Mounting Type: Surface Mount
  • Package/Case: 20-BFSOP (0.295", 7.50mm Width)
  • ECCN: EAR99
  • MSL Level: 3 (168 Hours)
  • REACH: Unaffected
