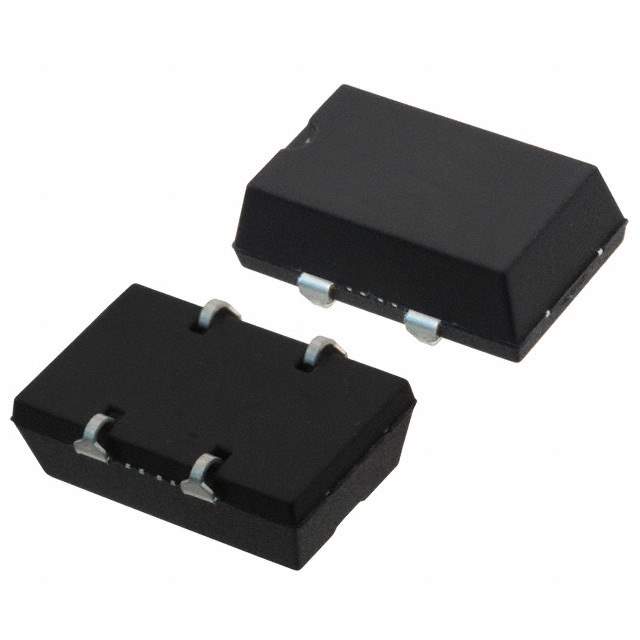

The ECS-8FMX-500-TR is a 50.000 MHz (50MHz) miniature SMD (Surface Mount Device) crystal oscillator from ECS Inc. It's designed for applications requiring a precise and stable clock signal in a compact form factor. This oscillator is commonly used in various electronic devices for timing and frequency control.

Applications

• Microcontrollers and Microprocessors Clock Source
• Real-Time Clocks (RTCs)
• Communication Equipment (e.g., Wireless Modules, Network Devices)
• Consumer Electronics (e.g., Wearable Devices, Portable Electronics)
• Industrial Control Systems

Features

• Frequency: 50.000 MHz
• Output Type: CMOS
• Frequency Stability: ±30 ppm (Parts Per Million)
• Operating Temperature Range: -40°C to +85°C
• Supply Voltage: 3.3V
• Package: 2.5 x 2.0 mm SMD
• Low Power Consumption
• Tri-State Enable/Disable Function

Benefits

• Precise and Stable Clock Signal
• Small Form Factor for Space-Constrained Applications
• Wide Operating Temperature Range
• Low Power Consumption
• Easy to Integrate into Electronic Designs
• Reliable Performance

Additional Details

The ECS-8FMX-500-TR crystal oscillator provides a highly accurate and stable clock signal for various digital circuits. Its small size and surface mount design make it ideal for use in portable and space-sensitive applications. The oscillator features a CMOS output, ensuring compatibility with a wide range of digital devices. The frequency stability of ±30 ppm guarantees consistent performance over a wide temperature range. The tri-state enable/disable function allows for power saving when the clock signal is not required. This oscillator is commonly used as a clock source for microcontrollers, microprocessors, and other digital ICs. It is RoHS compliant.
