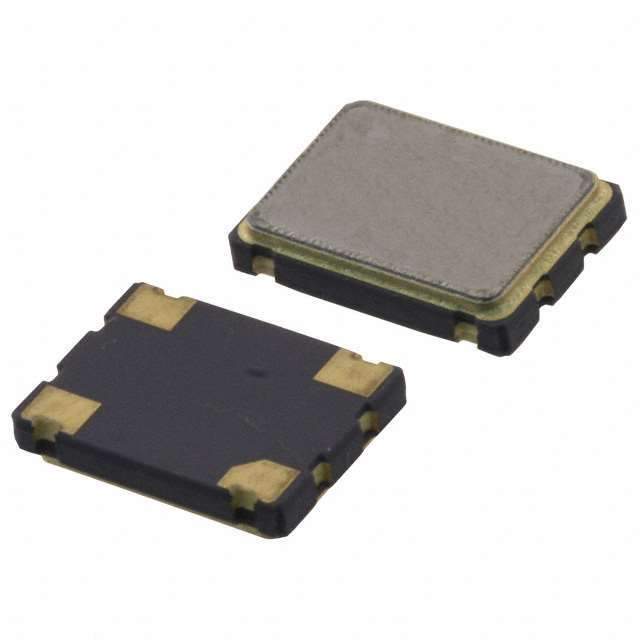

ECS-3953M-200-B-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-3953M-200-B-TR

Part No ECS-3953M-200-B-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description XTAL OSC XO 20.0000MHZ HCMOS SMD / 20 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Datasheet
ECS-3953M-200-B-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr ECS Inc.
Series ECS-3953M
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 20 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -10°C ~ 70°C
Current - Supply (Max) 15mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.067" (1.70mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1337754-ECS-3953M-200-B-TR
Ultra Librarian 3D Model Ultra Librarian ECS-3953M-200-B-TR CAD Model

Description

The ECS-3953M series from ECS Inc. is a type of standard XO oscillator. ECS Inc. is the manufacturer, and the product is ECS-3953M series.

  • Type: Standard XO
  • Packaging: Tape and Reel
  • Frequency: 20 MHz
  • Temperature Range: -10°C to 70°C
  • Spread Spectrum Bandwidth: -
  • Output: HCMOS
  • Voltage Supply: 3.3V
  • Maximum Current Supply: 15mA
  • Package: 4-SMD, no lead
  • Height: 0.067" (1.70mm)
  • Frequency Stability: ±50ppm
  • Function: Enable/Disable
