Same model may have multiple batches, images only for reference.

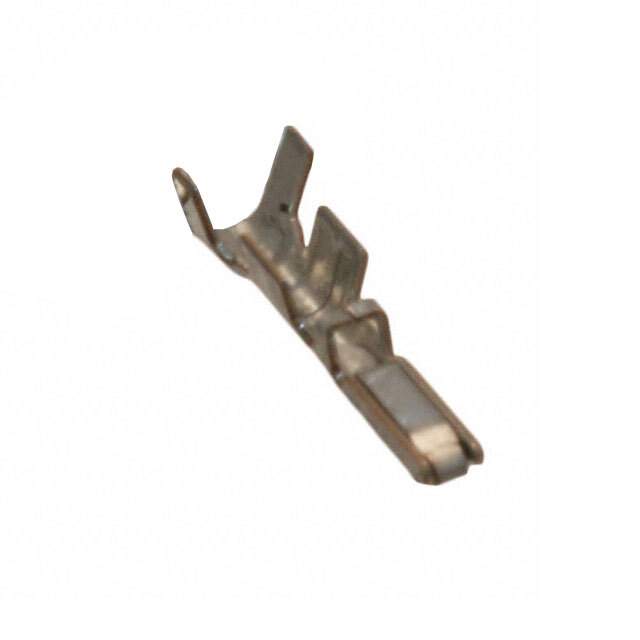

SZPD-002T-P0.3 Real Image
Same model may have multiple batches, images only for reference.

SZPD-002T-P0.3

Part No SZPD-002T-P0.3
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN SOCKET 24-28AWG CRIMP TIN  /  Socket Contact Tin 24-28 AWG Crimp
Datasheet
SZPD-002T-P0.3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Contacts
Mfr JST Sales America Inc.
Series ZPD
Package Tape & Reel (TR),Cut Tape (CT)
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 24-28 AWG
Contact Finish Tin
Base Product Number SZPD-002
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Other Names SZPD002TP03,455-2539-2,455-2539-1
Standard Package 16,000
Win Source Part Number 958588-SZPD-002T-P0.3
Ultra Librarian 3D Model Ultra Librarian SZPD-002T-P0.3 CAD Model

Description

This socket connector from JST Sales America Inc. is designed for crimp termination and is suitable for use with 24-28 AWG wire gauge.

  • Termination Type: Crimp
  • Wire Gauge: 24-28 AWG
  • Contact Finish: Tin
  • Packaging: Tape and Reel or Cut Tape
  • Standard Package: 16,000
  • HTSUS: 8536.90.4000
