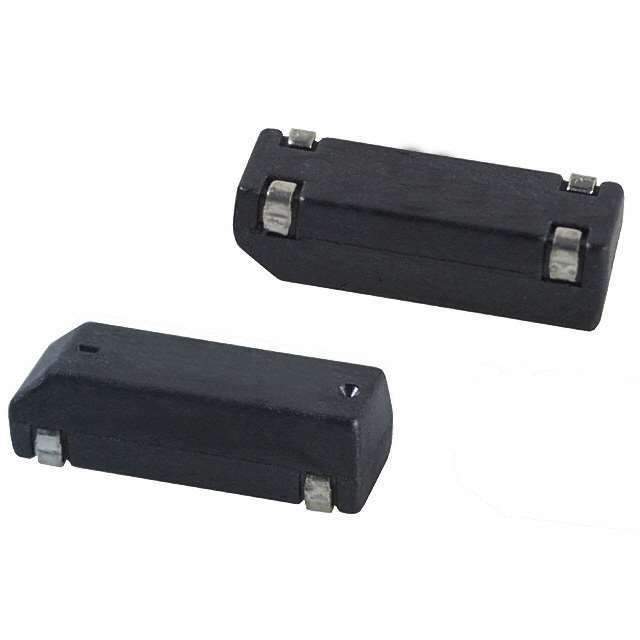

ECS-60-32-7SX-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-60-32-7SX-TR

Part No ECS-60-32-7SX-TR
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 6.0000MHZ 32PF SMD / 6 MHz ±30ppm Crystal 32pF 100 Ohms 4-SOJ, 9.40mm pitch
Datasheet
ECS-60-32-7SX-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr ECS Inc.
Series ECX-3SX
Package Tape & Reel
Product Status Not For New Designs
Type MHz Crystal
Frequency 6 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 32pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 70°C
Mounting Type Surface Mount
Package / Case 4-SOJ, 9.40mm pitch
Size / Dimension 0.492" L x 0.181" W (12.50mm x 4.60mm)
Height - Seated (Max) 0.146" (3.70mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1351246-ECS-60-32-7SX-TR
Ultra Librarian 3D Model Ultra Librarian ECS-60-32-7SX-TR CAD Model

Description

The ECX-3SX series MHz crystal is a high-performance crystal with a frequency of 6 MHz and a frequency tolerance of ±30ppm.

  • Frequency: 6 MHz
  • Frequency Tolerance: ±30ppm
  • ESR (Equivalent Series Resistance): 100 Ohms
  • Frequency Stability: ±50ppm
  • Mounting Type: Surface Mount
  • Package Size: 0.492" L x 0.181" W (12.50mm x 4.60mm)
  • Height: 0.146" (3.70mm)
  • Packaging: Tape and Reel
  • Standard Package: 1,000 units
