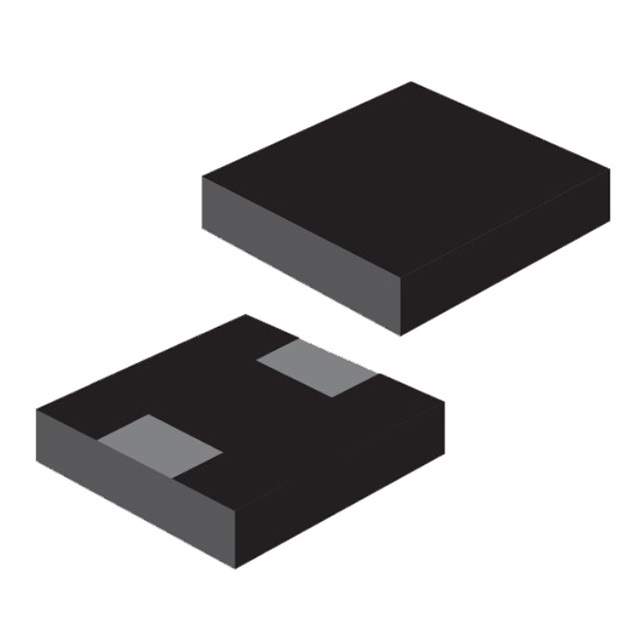

ECS-MPI2520R1-100-R Real Image
Same model may have multiple batches, images only for reference.

ECS-MPI2520R1-100-R

Part No ECS-MPI2520R1-100-R
Manufacturer ECS Inc.
Catalog Fixed Inductors
Description FIXED IND 10UH 1.1A 468 MOHM SMD / 10 µH Shielded Molded Inductor 1.1 A 468mOhm Max 1008 (2520 Metric)
Datasheet
ECS-MPI2520R1-100-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr ECS Inc.
Series ECS-MPI2520
Package Tape & Reel
Type Molded
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 1.1 A
Current - Saturation (Isat) 1.2A
Shielding Shielded
DC Resistance (DCR) 468mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names XC2415TR,XC2415CT,XC2415DKR
Standard Package 3,000
Win Source Part Number 1080111-ECS-MPI2520R1-100-R
Ultra Librarian 3D Model Ultra Librarian ECS-MPI2520R1-100-R CAD Model

Description

The ECS Inc. ECS-MPI2520R1-100-R is a fixed inductor that has an inductance of 10 µH and a tolerance of ±20%.

  • Inductance: 10 µH
  • Tolerance: ±20%
  • Mounting Type: surface mount
  • Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Package: tape and reel
  • Series: Inductors, Coils, Chokes
  • Shielded: Yes
  • Operating Temperature: -40°C to 105°C
  • DC Resistance (DCR): 468mOhm Max
