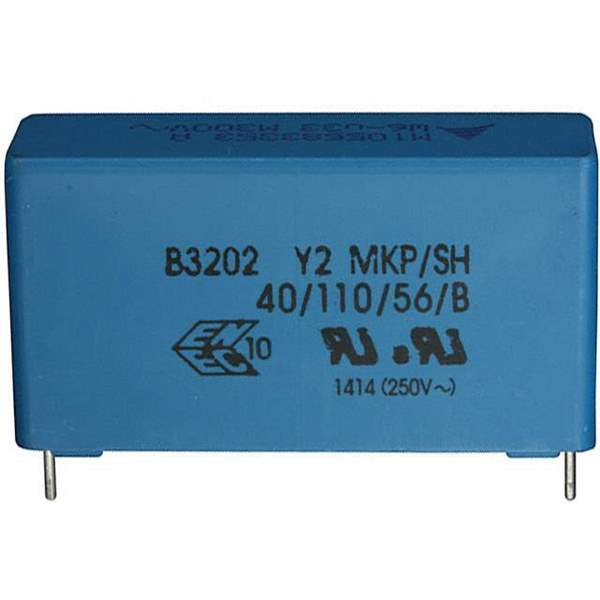

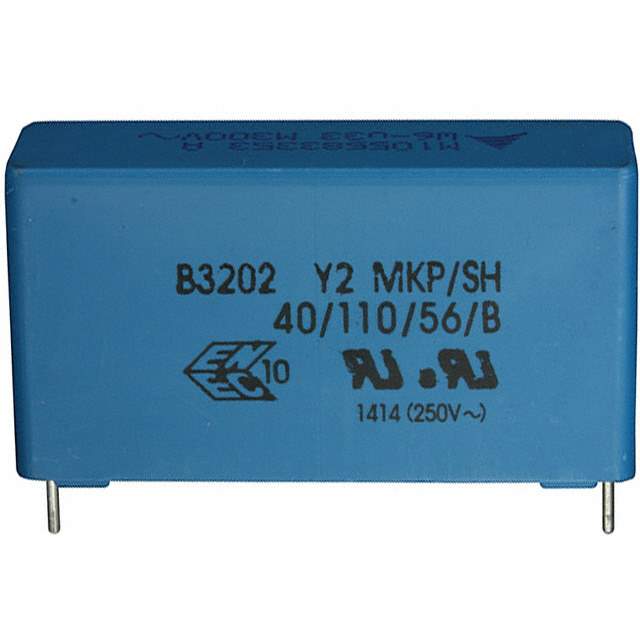

B32026A3105M000 Real Image
Same model may have multiple batches, images only for reference.

B32026A3105M000

Part No B32026A3105M000
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 1UF 20% 1.5KVDC RADIAL / 1 µF Film Capacitor 300V 1500V (1.5kV) Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr EPCOS - TDK Electronics
Series B3202* - Y2 Standard
Package Bulk
Capacitance 1 µF
Tolerance ±20%
Voltage Rating - AC 300V
Voltage Rating - DC 1500V (1.5kV)
Dielectric Material Polypropylene (PP) , Metallized
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 1.634" L x 0.709" W (41.50mm x 18.00mm)
Height - Seated (Max) 1.280" (32.50mm)
Termination PC Pins
Lead Spacing 1.476" (37.50mm)
Applications EMI, RFI Suppression
Ratings Y2
Standard Package 180
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0020
Win Source Part Number 1341240-B32026A3105M000
Ultra Librarian 3D Model Ultra Librarian B32026A3105M000 CAD Model

Description

The EPCOS (TDK) B32026A3105M000 Capacitor is a film capacitor with a capacitance of 1 µF and a tolerance of ±20%.

  • Voltage Rating: 300V AC, 1500V DC
  • Application: EMI/RFI Suppression
  • Package: Radial
  • Mounting Type: Through Hole
  • Standard Package: 180
  • Height: 1.280"
  • Rating: Y2
  • Dielectric Material: Polypropylene (PP), Metallized
  • Temperature Range: -40°C to 110°C
  • RoHS Compliant: Yes
