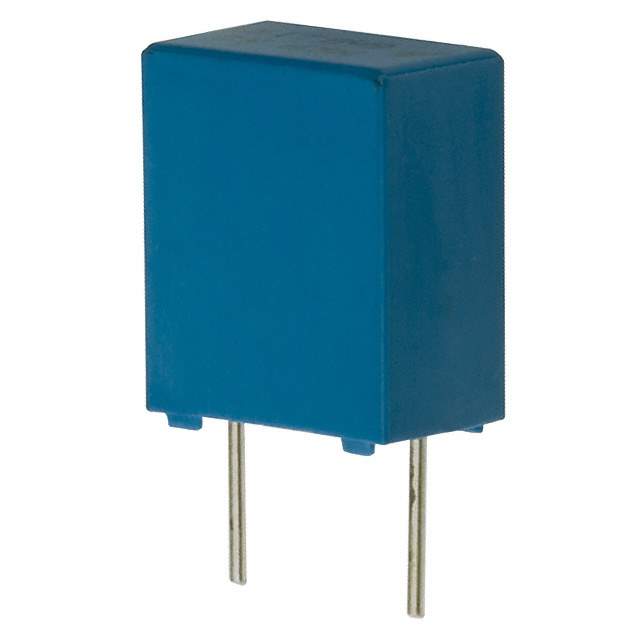

B32520C3224J289 Real Image
Same model may have multiple batches, images only for reference.

B32520C3224J289

Part No B32520C3224J289
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 0.22UF 5% 250VDC RADIAL  /  0.22 µF Film Capacitor 160V 250V Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr EPCOS - TDK Electronics
Series B3252* - MKT General Purpose
Package Tape & Box (TB)
Capacitance 0.22 µF
Tolerance ±5%
Voltage Rating - AC 160V
Voltage Rating - DC 250V
Dielectric Material Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.406" L x 0.236" W (10.30mm x 6.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Termination PC Pins
Lead Spacing 0.295" (7.50mm)
Applications Automotive; EMI, RFI Suppression
Ratings AEC-Q200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Standard Package 5,200
Win Source Part Number 1208254-B32520C3224J289
Ultra Librarian 3D Model Ultra Librarian B32520C3224J289 CAD Model

Description

The EPCOS-TDK Electronics B32520C3224J289 is a film capacitor designed for automotive and EMI/RFI suppression applications.

  • Capacitance: 0.22 µF
  • Tolerance: ±5%
  • Voltage Rating: 160V AC and 250V DC
  • Mounting Style: Through-hole
  • Package: Tape and Box
  • Length: 0.406 inches
  • Width: 0.236 inches
  • Height: 0.472 inches
  • Temperature Range: -55°C to 125°C
  • AEC-Q200 Compliant: Yes
  • Series: B3252* - MKT General Purpose
