Same model may have multiple batches, images only for reference.

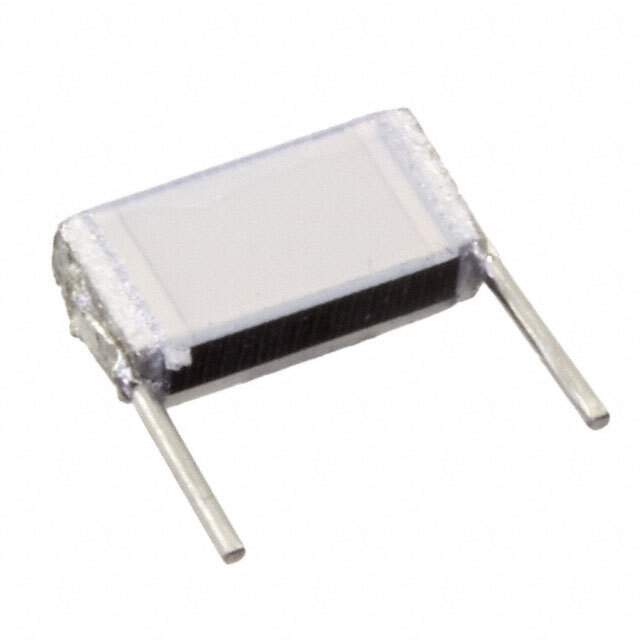

B32560J8222K289 Real Image
Same model may have multiple batches, images only for reference.

B32560J8222K289

Part No B32560J8222K289
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 2200PF 10% 630VDC 2DIP
Datasheet
B32560J8222K289 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging AMMO PACKAGE
Status Active
Capacitance 2200pF
Tolerance ±10%
Voltage Rating - AC 400V
Voltage Rating - DC 630V
Dielectric Material Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting Through Hole
Dimension 0.354" L x 0.098" W (9.00mm x 2.50mm)
Height - Seated (Max) 0.217" (5.50mm)
Termination PC Pins
Lead Spacing 0.295" (7.50mm)
Applications General Purpose
Win Source Part Number 1021454-B32560J8222K289
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B32560J8222K289 CAD Model

Description

The 1021454-B32560J8222K289 is a general-purpose capacitor manufactured by EPCOS (TDK).

  • Application: General Purpose
  • Supply and Demand Status: Balanced
  • Features: Excellent Performance and Reliability, High-Quality Construction, High Voltage and Temperature Range Handling, Easy Installation, Cost-Effective
