Same model may have multiple batches, images only for reference.

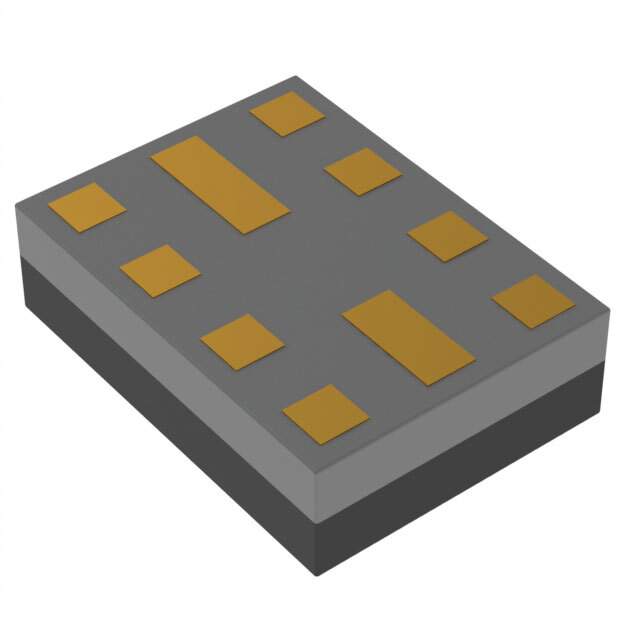

B39461-B5034-H810 Real Image
Same model may have multiple batches, images only for reference.

B39461-B5034-H810

Part No B39461-B5034-H810
Manufacturer EPCOS (TDK)
Catalog SAW Filters
Description FILTER SAW IF 456.0MHZ WIMAX SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer EPCOS (TDK)
Packaging Reel - TR
Status Obsolete(EOL)
Frequency - Center 456MHz
Bandwidth 4.8MHz
Insertion Loss 6.8dB
Applications WiMax
Mounting SMD (SMT)
Height (Max) 0.052" (1.33mm)
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Win Source Part Number 048871-B39461-B5034-H810
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian B39461-B5034-H810 CAD Model

Description

B39461-B5034-H810: High-Performance SAW Filter for Industrial Applications

The B39461-B5034-H810 enhances signal integrity in industrial communication systems, offering reliability and performance needed in dynamic environments. It supports a broad range of industrial wireless systems.

  • Applications:
    • Industrial communication networks
    • Automated control systems
    • Industrial IoT (IIoT) devices
    • Power grid communication networks
  • Features & Benefits:
    • Exceptional resistance to environmental stress
    • Minimal signal loss for clean transmission
    • High precision and reliability in operation
    • Small footprint for diverse integration
  • Additional Details:
    • Filter type: Narrowband SAW
    • Temperature operational range: -40°C to +125°C
    • Environmental standards compliance
