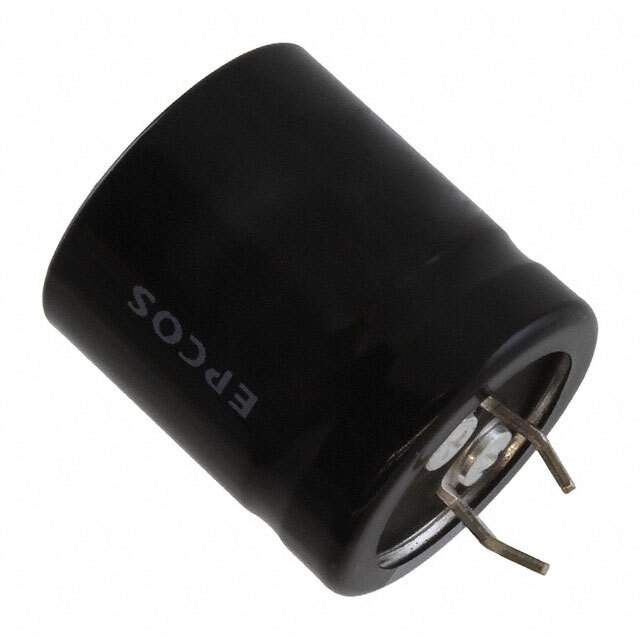

The B43254A2227M is an aluminum electrolytic capacitor manufactured by EPCOS, a TDK Group company. Aluminum electrolytic capacitors are widely used in electronic circuits for various purposes, including power supply filtering, energy storage, and coupling/decoupling applications. They are characterized by their relatively high capacitance values for their size and cost-effectiveness.

Applications:

• Power supplies: Used for smoothing rectified DC voltage and reducing ripple.
• Inverters: Employed in DC-AC inverters for energy storage and filtering.
• Frequency converters: Used for filtering and energy storage in AC-AC frequency converters.
• Renewable energy systems: Applied in solar inverters and wind turbine converters for DC link capacitance.
• Industrial electronics: Provides bulk capacitance for various industrial applications.

Features:

• High capacitance: Offers large capacitance values in a compact size.
• Long lifetime: Designed for extended operating life under specified conditions.
• High ripple current capability: Can withstand significant AC ripple currents without overheating.
• Polarized: Requires correct polarity connection to prevent damage.
• Aluminum construction: Aluminum case and electrodes for cost-effectiveness and performance.
• RoHS compliant: Meets environmental standards for hazardous substances.

Benefits:

• Effective filtering: Smooths DC voltage and reduces ripple for improved power quality.
• Energy storage: Provides energy storage for transient loads and backup power.
• Reliable performance: Ensures stable and reliable operation in demanding applications.
• Cost-effective: Offers a cost-effective solution for bulk capacitance requirements.
• Wide availability: Easily sourced from multiple distributors and suppliers.

Technical Specifications:

The B43254A2227M aluminum electrolytic capacitor features a specific capacitance value (220 uF) and voltage rating (250V). The exact dimensions, ripple current rating, ESR (Equivalent Series Resistance), and operating temperature range are detailed in the EPCOS/TDK datasheet. It's typically a snap-in or screw-terminal type for easy board mounting and secure connection. Its long lifetime and high ripple current capability make it suitable for power electronics applications where these parameters are critical. The datasheet also specifies the expected lifetime at different temperatures and ripple current levels, allowing for accurate design calculations and reliability assessments.

Selecting the correct aluminum electrolytic capacitor is critical for the proper operation and reliability of power electronic systems. The B43254A2227M from EPCOS (TDK) is a robust component suitable for a wide range of applications. Always refer to the official datasheet for the most accurate and up-to-date specifications.
