Same model may have multiple batches, images only for reference.

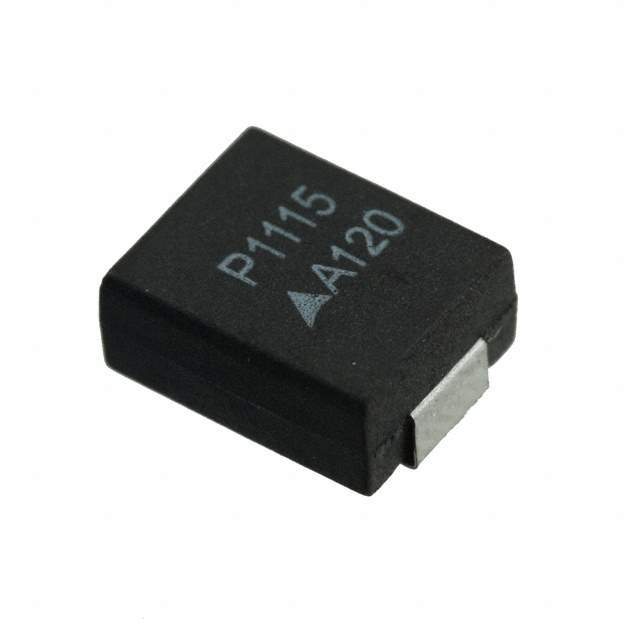

B59115P1120A062 Real Image
Same model may have multiple batches, images only for reference.

B59115P1120A062

Part No B59115P1120A062
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 80V 70MA 3225
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 25 Weeks
Features Ceramic PTC Resettable Fuse 80V Ih Surface Mount 3225 (8063 Metric)
Manufacturer EPCOS (TDK)
Package Reel - TR
Operating Temperature Range -40°C ~ 60°C
Mounting Surface Mount
Package 3225 (8063 Metric)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Part Number 495-4407-6, 495-4407-2, 495-4407-1, B59115P1120A 62, B59115P1120A62
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 863130-B59115P1120A062
Ultra Librarian 3D Model Ultra Librarian B59115P1120A062 CAD Model

Description

The EPCOS (TDK) 863130-B59115P1120A062 is a ceramic PTC resettable fuse with a maximum operating temperature range of -40°C to 60°C.

  • Mounting Type: Surface Mount
  • Package: 3225 (8063 Metric)
  • Packaging: Reel
  • Estimated Production Lead Time: 25 weeks
  • REACH: Unaffected
