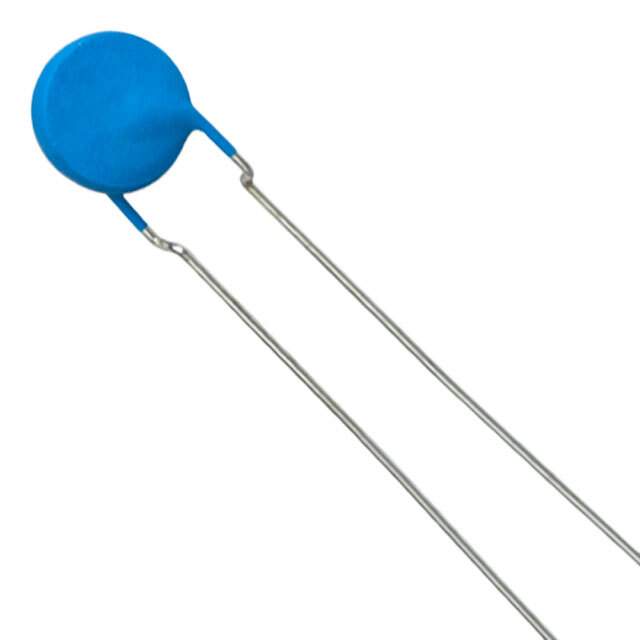

B59860C0130A070 Real Image
Same model may have multiple batches, images only for reference.

B59860C0130A070

Part No B59860C0130A070
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESETTABLE 140MA 230V RAD
Datasheet
B59860C0130A070 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Type Ceramic
Voltage - Max 265V
Current - Max 1A
Current - Hold (Ih) (Max) 140mA
Current - Trip (It) 230mA
Resistance - 25°C (Typ) 25 Ohm
Temperature Range - Operating 0°C to 60°C
Mounting Through Hole
Dimension 0.354" Dia x 0.197" W (9.00mm x 5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Lead Spacing 0.197" (5.00mm)
Approvals UR
Win Source Part Number 199975-B59860C0130A070
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian B59860C0130A070 CAD Model

Description

Product Features and Benefits

  • Excellent thermal conductivity.
  • Advances efficiency in temperature-sensitive operations.
  • Compact form factor for versatility.

Applications

  • Renewable energy systems
  • Medical equipment
  • Aerospace electronics

Additional Details

The B59860C0130A070 stands out for its excellent thermal conductivity, making it indispensable for renewable energy and medical applications where temperature regulation is vital.
