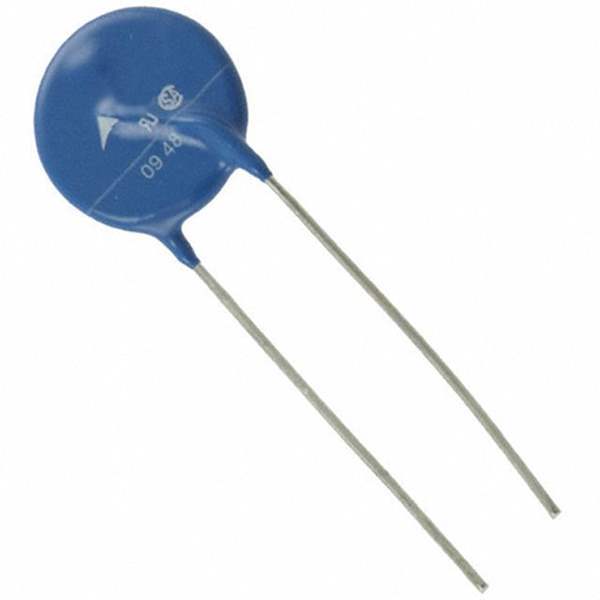

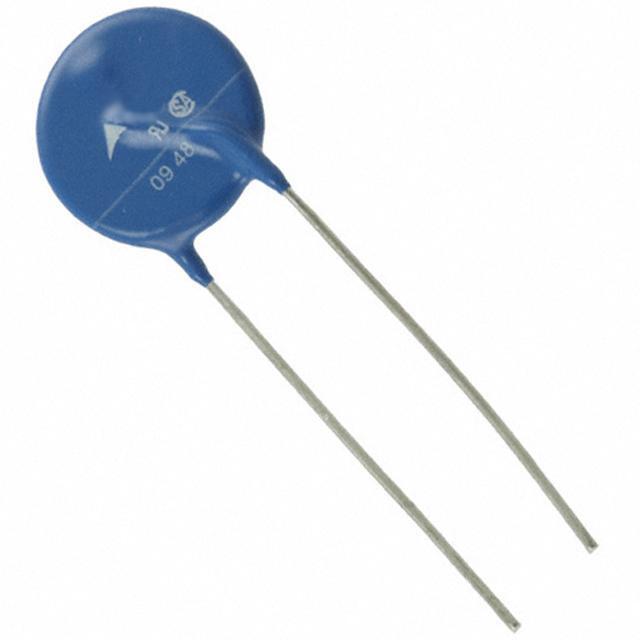

B72214P2301K101

Part No B72214P2301K101
Manufacturer EPCOS (TDK)
Catalog TVS - Varistors, MOVs
Description VARISTOR 470V 6KA DISC 14MM
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Varistor Voltage (Min) 423V
Varistor Voltage (Typ) 470V
Varistor Voltage (Max) 517V
Current - Surge 6kA
Energy 140J
Number of Circuits 1
Maximum AC Volts 300VAC
Maximum DC Volts 385VDC
Capacitance @ Frequency 485pF @ 1kHz
Temperature Range - Operating -40°C to 85°C (TA)
Mounting Through Hole
Dimension Disc 14mm
Win Source Part Number 200055-B72214P2301K101
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian B72214P2301K101 CAD Model

Description

Description

The B72214P2301K101 varistor is engineered to provide exceptional protection against voltage transients in numerous applications. It is optimized for both industrial and commercial use, delivering robust performance.

Applications

  • Lighting Systems
  • HVAC Units
  • Data Centers

Features and Benefits

  • Long Lifespan - Reliability over extended periods of operation.
  • Superior Thermal Performance - Maintains function under heat stress.
  • Customizable Parameters - Adaptability to specific protection needs.

Additional Details

This component is ESD protected, capable of withstanding electrostatic discharges, which enhances its durability in sensitive electronic environments.
