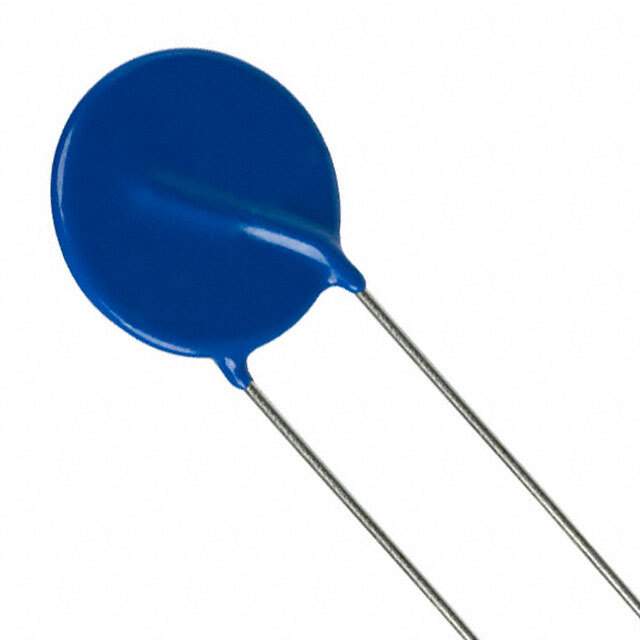

B72225S4511K101 Real Image
Same model may have multiple batches, images only for reference.

B72225S4511K101

Part No B72225S4511K101
Manufacturer EPCOS (TDK)
Catalog TVS - Varistors, MOVs
Description VARISTOR 820V 20KA DISC 27.5MM  /  820 V 20 kA Varistor 1 Circuit Through Hole Disc 27.5mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr EPCOS - TDK Electronics
Series SuperioR, S25
Package Bulk
Maximum AC Volts 510 V
Maximum DC Volts 670 V
Varistor Voltage (Min) 738 V
Varistor Voltage (Typ) 820 V
Varistor Voltage (Max) 902 V
Current - Surge 20 kA
Energy 750J
Number of Circuits 1
Capacitance @ Frequency 950 pF @ 1 kHz
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting Type Through Hole
Package / Case Disc 27.5mm
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Other Names S25K510E4R12,B72225S4511K101-ND,495-77320
Standard Package 150
Win Source Part Number 1168851-B72225S4511K101
Ultra Librarian 3D Model Ultra Librarian B72225S4511K101 CAD Model

Description

The B72225S4511K101 is a through-hole TVS-varistor with a disc 27.5mm case/package manufactured by EPCOS (TDK).

  • Capacitance: 950 pF @ 1 kHz
  • Varistor Voltage (Typ): 820 V
  • Varistor Voltage (Min): 738 V
  • Varistor Voltage (Max): 902 V
  • Surge Current: 20 kA
  • Maximum AC Voltage: 510 V
  • Maximum DC Voltage: 670 V
  • Energy: 750J
  • RoHS Compliant: Yes
  • Popularity: Medium
