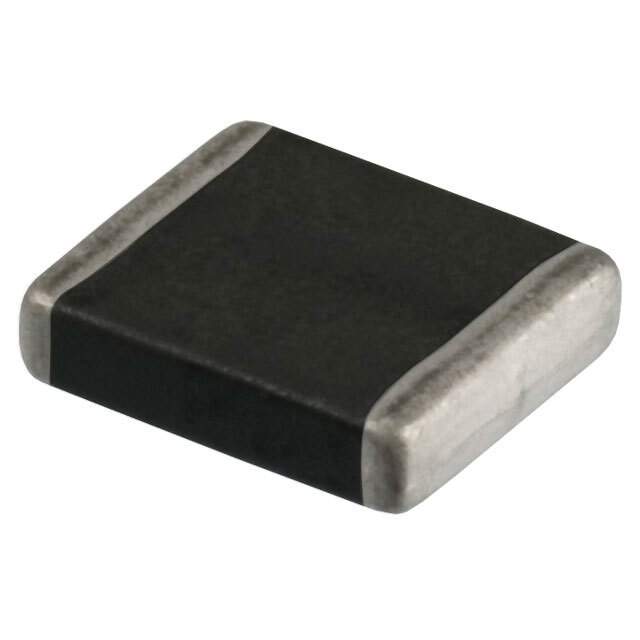

B72542V3140S272 Real Image
Same model may have multiple batches, images only for reference.

B72542V3140S272

Part No B72542V3140S272
Manufacturer EPCOS (TDK)
Catalog TVS - Varistors, MOVs
Description VARISTOR 22V 1.2KA 2220
Datasheet
B72542V3140S272 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer EPCOS (TDK)
Packaging Reel - TR
Status Active
Varistor Voltage (Typ) 22V
Current - Surge 1.2kA
Energy 5.8J
Number of Circuits 1
Maximum AC Volts 14VAC
Maximum DC Volts 16VDC
Capacitance @ Frequency 15000pF @ 1kHz
Temperature Range - Operating -55°C to 125°C (TA)
Mounting Surface Mount, MLCV
Dimension 2220 (5750 Metric)
Win Source Part Number 048962-B72542V3140S272
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B72542V3140S272 CAD Model

Description

Overview

The B72542V3140S272 varistor offers excellent voltage suppression capabilities, ideal for protecting sensitive electronics from transients and surges.

Applications

  • Telecommunications Equipment
  • Power Supplies
  • Home Appliance Circuits

Features and Benefits

  • Wide operating temperature range
  • Low clamping voltage
  • Enhanced reliability and durability

This varistor features a broad operating temperature window, ensuring stable and reliable performance across various environmental conditions.
