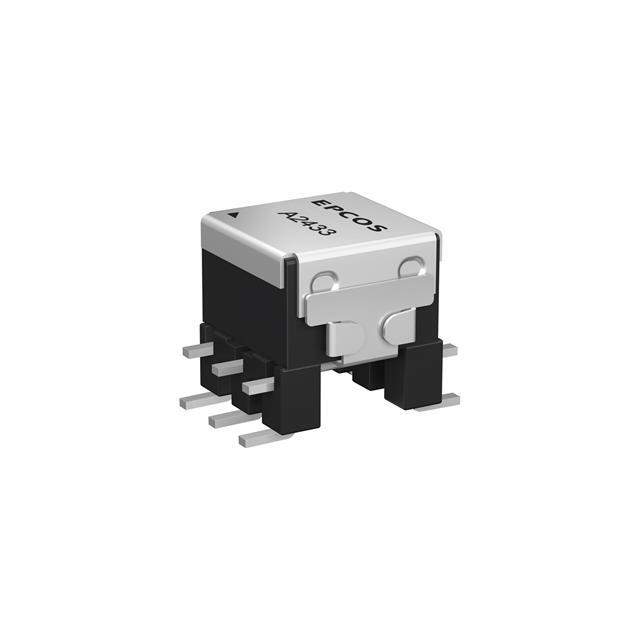

B78416A2360A003 Real Image
Same model may have multiple batches, images only for reference.

B78416A2360A003

Part No B78416A2360A003
Manufacturer EPCOS (TDK)
Catalog Pulse Transformers
Description EP6 SMD TRANSFORMER / 3mH Pulse Transformer 1:1:8.42 Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr EPCOS - TDK Electronics
Series B7416A
Package Tape & Reel
Inductance 3mH
Mounting SMD (SMT)
Dimension 0.260" L x 0.260" W (6.60mm x 6.60mm)
Height - Seated (Max) 0.280" (7.10mm)
Temperature Range - Operating -40°C ~ 85°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Names B78416A2360A 3,495-77442-6,495-77442-1,495-77442-2
Standard Package 1,000
Win Source Part Number 1011988-B78416A2360A003
Ultra Librarian 3D Model Ultra Librarian B78416A2360A003 CAD Model

Description

The EPCOS - TDK Electronics B78416A2360A003 is a pulse transformer with an inductance of 3mH.

  • Type: Pulse Transformer
  • Inductance: 3mH
  • Series: B7416A
  • Mounting: Surface Mount
  • Package: Tape and Reel
  • Standard Package: 1000
  • Height (Seated): 0.280 inches (7.10mm)
  • Dimension: 0.260 inches (6.60mm) in length and width
  • Operating Temperature: -40°C to 85°C
  • REACH: Unaffected
  • ECCN: EAR99
  • Maximum Input Voltage: 25V
  • Maximum Output Voltage: 19V
