Same model may have multiple batches, images only for reference.

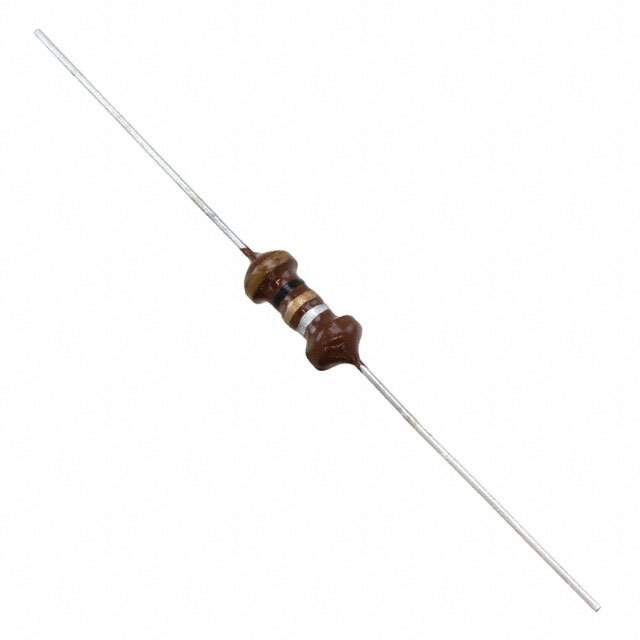

B82144A2102K000 Real Image
Same model may have multiple batches, images only for reference.

B82144A2102K000

Part No B82144A2102K000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 1UH 2.2A 80 MOHM TH / 1 µH Unshielded Drum Core, Wirewound Inductor 2.2 A 80mOhm Max Axial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr EPCOS - TDK Electronics
Series LBC
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1 µH
Tolerance ±10%
Current Rating (Amps) 2.2 A
Shielding Unshielded
DC Resistance (DCR) 80mOhm Max
Q @ Freq 40 @ 7.96MHz
Frequency - Self Resonant 200MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Type Through Hole
Package / Case Axial
Dimension 0.205" Dia x 0.472" L (5.20mm x 12.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8504.50.8000
Other Names B82144A2102K-ND,495-5611-6-ND,B82144A2102K,495-5611-6INACTIVE,495-5611-6,495-5611-2,495-5611-1
Standard Package 1,500
Win Source Part Number 1047950-B82144A2102K000
Ultra Librarian 3D Model Ultra Librarian B82144A2102K000 CAD Model

Description

This inductor is manufactured by EPCOS - TDK Electronics and has a standard package of 1,500.

  • Standard Package: 1,500
  • Type: Drum Core, Wirewound
  • Tolerance: ±10%
  • Inductance: 1μH
  • DC Resistance: 80mOhm Max
  • Frequency Self-Resonant: 200MHz
  • Q @ Freq: 40 @ 7.96MHz
  • Shielded: Yes
  • Mounting Type: Through-Hole
  • Temperature Range: -55°C ~ 125°C
  • MSL Level: 1 (Unlimited)
  • Alternative Parts: LQH31MN1R0K03L, 78F1R0K-RC, 744766901, CM453232-1R0KL, CM322522-1R0KL, LQM21NN1R0K10DB82144-A2102-K, B82144-A2102-K000, B82144A2102K
