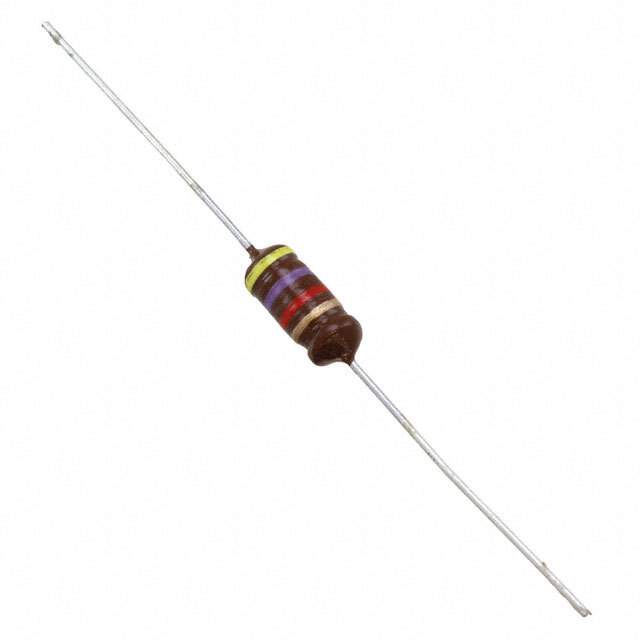

B82144A2475J000 Real Image
Same model may have multiple batches, images only for reference.

B82144A2475J000

Part No B82144A2475J000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 4.7MH 90MA 20 OHM TH / 4.7 mH Unshielded Drum Core, Wirewound Inductor 90 mA 20Ohm Max Axial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer EPCOS - TDK Electronics
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 mH
Tolerance ±5%
Current Rating (Amps) 90 mA
Shielding Unshielded
DC Resistance (DCR) 20Ohm Max
Q @ Freq 60 @ 252kHz
Frequency - Self Resonant 500kHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Through Hole
Case / Package Axial
Size / Dimension 0.205" Dia x 0.472" L (5.20mm x 12.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number B82144A2475J,B82144A2475J-ND,495-5624-2,495-5624-1
Standard Package 1,500
Win Source Part Number 1327422-B82144A2475J000
Ultra Librarian 3D Model Ultra Librarian B82144A2475J000 CAD Model

Description

EPCOS - TDK Electronics 1327422-B82144A2475J000 is an electronic component that is categorized as a fixed inductor.

  • Status: Active
  • Standard Package: 1,500
  • Temperature Range: -55°C to 125°C
  • Height: 0.472 inches L x 0.205 inches W (12.00mm x 5.20mm)
  • Inductance: 4.7mH
  • Tolerance: ±5%
  • Mounting: Through-Hole
  • DC Resistance (DCR): 20Ohm Max
  • Material: Ferrite
  • Q @ Freq: 60 @ 252kHz
