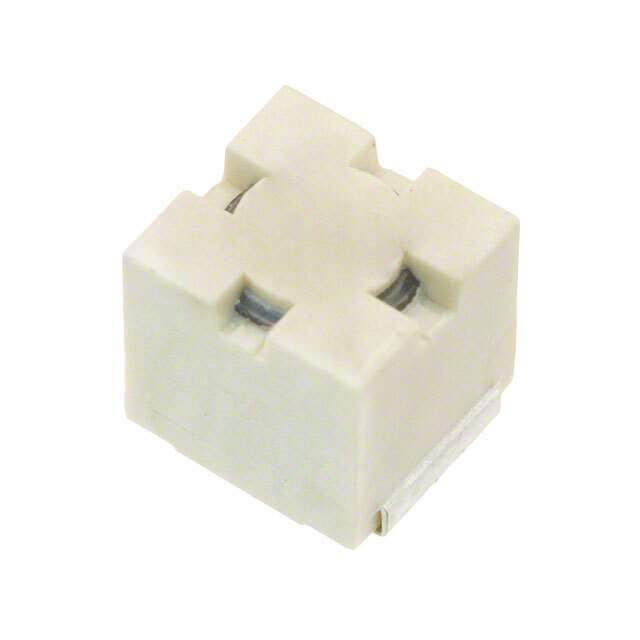

B82442A1224K Real Image
Same model may have multiple batches, images only for reference.

B82442A1224K

Part No B82442A1224K
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description Ind General Purpose Chip Wirewound 220uH 10% 796KHz 20Q-Factor Ferrite 170mA 2220 Blister T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 2220
Case Code (Imperial) 2220
Case / Package 5750
Core Material Ferrite
Current Rating 170 mA
DC Current 170 mA
DC Resistance (DCR) 2.72 Ω
Depth 5.3 mm
Height 5 mm
Inductance 220 µH
Inductance Tolerance 10 %
Lead Free Yes
Length 5.6 mm
Max DC Current 170 mA
Maximum Operating Temperature 150 °C
Military Standard Not
Mount Surface Mount
Number of Pins 2
Q Factor 20
Radiation Hardening No
REACH SVHC No SVHC
Resistance 2.72 Ω
RoHS Compliant
Schedule B 8504500000
Self Resonant Frequency 3.9 MHz
Shielding Unshielded
Termination SMD/SMT
Test Frequency 796 kHz
Tolerance 10 %
Weight 480.014126 mg
Width 5.0038 mm
Win Source Part Number 1047958-B82442A1224K
Categories Fixed Inductors
Manufacturer EPCOS (TDK)
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian B82442A1224K CAD Model

Description

The EPCOS (TDK) B82442A1224K is a surface mount fixed inductor designed for use in electronic circuits.

  • Inductance: 220 µH
  • DC Resistance: 2.72 Ω
  • Current Rating: 170 mA
  • Core Material: Ferrite
  • Tolerance: 10%
  • Test Frequency: 796 kHz
  • Self-Resonant Frequency: 3.9 MHz
  • Shielding: Unshielded
  • Height: 5 mm
  • Length: 5.6 mm
  • Width: 5.0038 mm
  • Case/Package: 5750 or 2220
  • Supply: Digi-Reel
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Maximum Temperature: 150 °C
