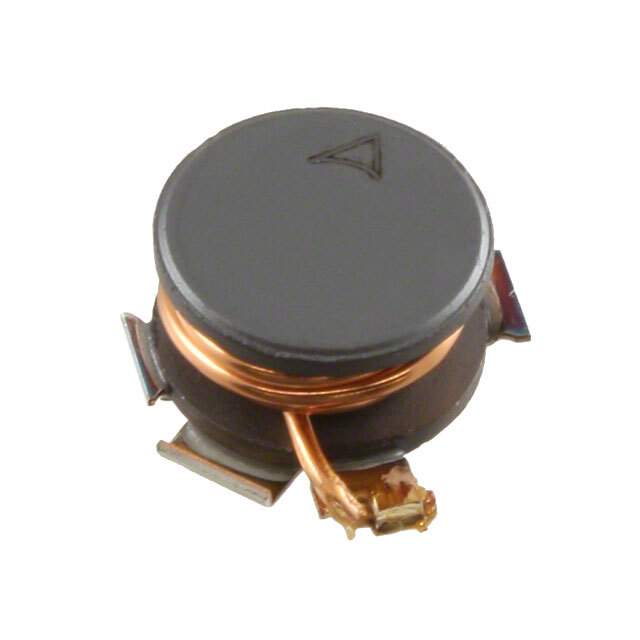

B82464A4153K Real Image
Same model may have multiple batches, images only for reference.

B82464A4153K

Part No B82464A4153K
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description Inductor Power Wirewound 15uH 10% 100KHz Ferrite 2.5A 46mOhm DCR Automotive Blister T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package Nonstandard
Composition Wirewound
Core Material Ferrite
Current Rating 2.5 A
DC Current 2.5 A
DC Resistance (DCR) 46 mΩ
Depth 10.4 mm
Height 4.8 mm
Height - Seated (Max) 4.8006 mm
Inductance 15 µH
Inductance Tolerance 10 %
Lead Free Yes
Length 10.4 mm
Max DC Current 2.5 A
Maximum Operating Temperature 150 °C
Military Standard Not
Min Operating Temperature -55 °C
Mount Surface Mount
Number of Pins 2
Packaging Cut Tape
Radiation Hardening No
Ratings AEC-Q200
REACH SVHC No SVHC
Resistance 46 mΩ
RMS Current (Irms) 2.5 A
RoHS Compliant
Saturation Current 3.2 A
Schedule B 8504500000, 8504500000
Self Resonant Frequency 18 MHz
Shielding Unshielded
Termination SMD/SMT
Test Frequency 100 kHz
Tolerance 10 %
Weight 1.09999 g
Width 10.3886 mm
Win Source Part Number 1047962-B82464A4153K
Categories Fixed Inductors
Manufacturer EPCOS (TDK)
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian B82464A4153K CAD Model

Description

The EPCOS (TDK) 1047962-B82464A4153K is a surface-mount fixed inductor with a 15μH inductance.

  • Inductance: 15μH
  • Popularity Rating: Low
  • Supply and Demand Status: Shortage
  • AEC-Q200 Rated: Yes
  • Maximum Operating Temperature: 150°C
  • RoHS Compliant: Yes
  • Lead-Free: Yes
  • DC Resistance: 46 mΩ
  • Current Rating: 2.5 A
