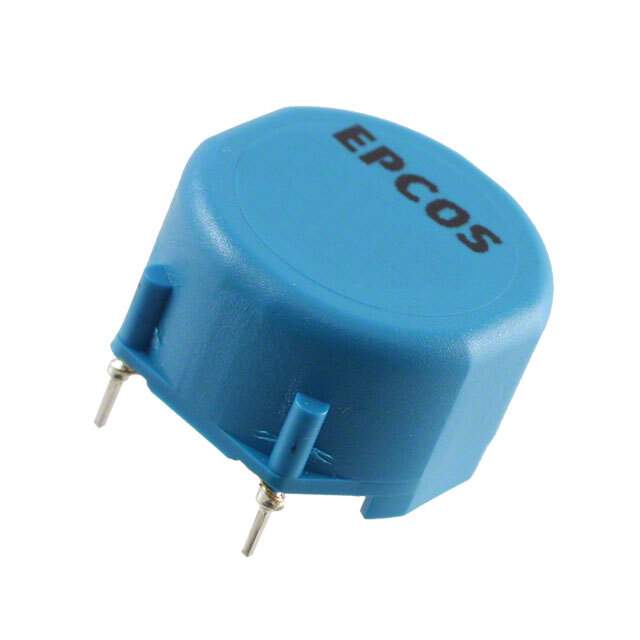

B82723A2402N Real Image
Same model may have multiple batches, images only for reference.

B82723A2402N

Part No B82723A2402N
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 2.7MH 4A 2LN TH
Datasheet
B82723A2402N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer EPCOS (TDK)
Packaging Tray
Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2.7mH @ 10kHz
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 60 mOhm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -40°C to 125°C
Approvals ENEC, UR, VDE
Mounting Through Hole
Height (Max) 0.661" (16.80mm)
Dimension Horizontal, 4 PC Pin
Win Source Part Number 200262-B82723A2402N
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B82723A2402N CAD Model

Description

Description:

The B82723A2402N common mode choke is designed for efficiency in suppressing electromagnetic interference in both digital and analog circuits. It plays a vital role in safeguarding electronic devices against performance disruptions.

Features & Benefits:

  • High common mode noise attenuation - provides superior protection
  • Reliable under various environmental conditions - designed for diverse applications
  • Rugged construction - ensures consistent performance over time
  • Compact and lightweight - ideal for design-conscious applications

Applications:

  • EMI suppression in computing devices
  • Noise reduction in consumer electronics
  • Signal protection in broadcast equipment
  • Interference control in smart home devices
