Same model may have multiple batches, images only for reference.

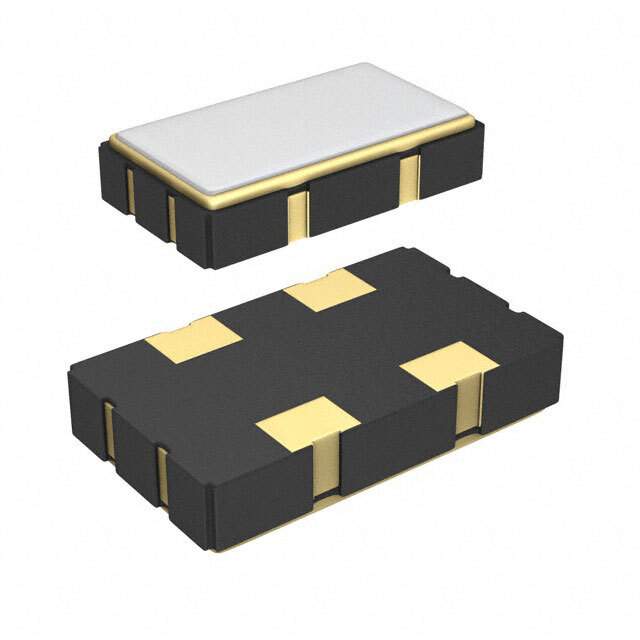

SG5032CCN 8.000000M-HJGA3 Real Image
Same model may have multiple batches, images only for reference.

SG5032CCN 8.000000M-HJGA3

Part No SG5032CCN 8.000000M-HJGA3
Manufacturer Epson Company
Catalog Oscillators
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr EPSON
Series SG5032
Package Tape & Reel (TR)
Base Resonator Crystal
Type XO (Standard)
Frequency 8 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 4.5V ~ 5.5V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 20mA
Mounting SMD (SMT)
Package / Case 6-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.051" (1.30mm)
Current - Supply (Disable) (Max) 10mA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1314578-SG5032CCN 8.000000M-HJGA3
Ultra Librarian 3D Model Ultra Librarian SG5032CCN 8.000000M-HJGA3 CAD Model

Description

The SG5032CCN 8.000000M-HJGA3 from EPSON is an oscillator designed for crystals, oscillators, and resonators applications.

  • Series: SG5032
  • Type: XO (Standard)
  • Output: CMOS
  • Package: Tape and Reel
  • Height Seated (Max): 0.051" (1.30mm)
  • Frequency: 8 MHz
  • Frequency Stability: ±50ppm
  • Voltage Supply: 4.5V to 5V
  • Current Supply (Max): 20mA
  • Current Supply (Disable) (Max): 10mA
