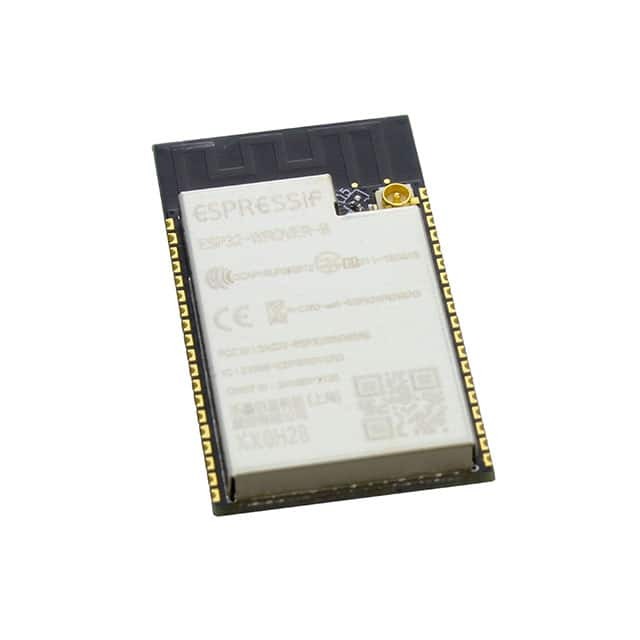

ESP32-WROVER-IB-N16R8 Espressif
Same model may have multiple batches, images only for reference.

ESP32-WROVER-IB-N16R8

Part No ESP32-WROVER-IB-N16R8
Manufacturer Espressif
Catalog RF Transceiver Modules
Datasheet
ESP32-WROVER-IB-N16R8 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr Espressif Systems
Series ESP32
Package Tape & Reel
Product Status Not For New Designs
RF Family/Standard Bluetooth, WiFi
Protocol 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3
Modulation CCK, DSSS, OFDM
Frequency 2.412GHz ~ 2.484GHz
Data Rate 150Mbps
Power - Output 20dBm
Sensitivity -98dBm
Serial Interfaces GPIO, I2C, I2S, PWM, SDIO, SPI, UART
Antenna Type Antenna Not Included, U.FL
Utilized IC / Part ESP32-D0WD
Memory Size 448kB ROM, 536kB SRAM
Voltage - Supply 2.3V ~ 3.6V
Current - Receiving 95mA ~ 100mA
Current - Transmitting 130mA ~ 240mA
Mounting SMD (SMT)
Temperature Range - Operating -40°C ~ 125°C
Package / Case 38-SMD Module
Base Product Number ESP32
MSL Level 3 (168 Hours)
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1315299-ESP32-WROVER-IB-N16R8
Ultra Librarian 3D Model Ultra Librarian ESP32-WROVER-IB-N16R8 CAD Model

Description

The 1315299-ESP32-WROVER-IB-N16R8 is a RF Transceiver Module from Espressif Systems, a leading manufacturer of wireless communication solutions.

  • Frequency Range: 2.412GHz to 2.484GHz
  • Protocols: 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3
  • Data Rate: 150Mbps
  • Memory Size: 448kB ROM and 536kB SRAM
  • Mounting Type: SMD (SMT)
  • Package: 38-SMD Module
  • Serial Interfaces: GPIO, I2C, I2S, PWM, SDIO, and UART
  • Power Output: 20dBm
  • Sensitivity: -98dBm
  • Voltage Range: 2.3V to 3.6V
  • Ideal for: Wireless communication applications that require high-speed data transfer and low power consumption.
