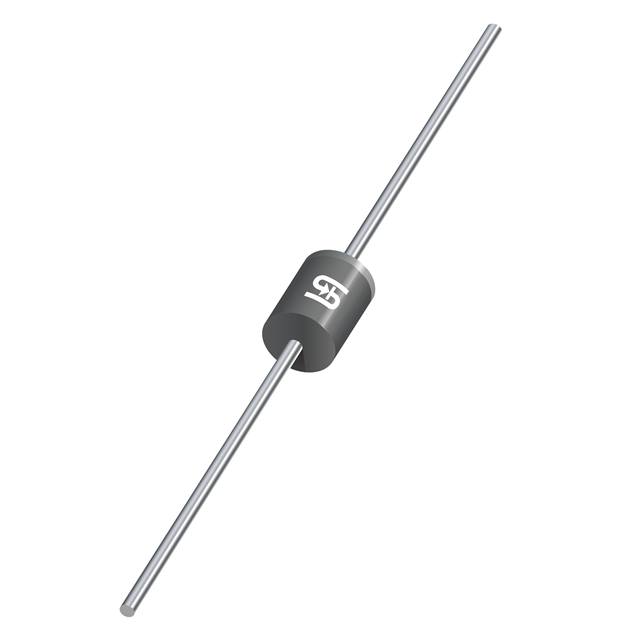

BZX85C4V3 Real Image
Same model may have multiple batches, images only for reference.

BZX85C4V3

Part No BZX85C4V3
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes - Zener - Single
Description DIODE ZENER 4.3V 1W DO41
Datasheet
BZX85C4V3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Bulk
Status Active
Voltage - Zener (Nom) (Vz) 4.3V
Tolerance ±7%
Maximum Power Dissipation 1W
Impedance (Max) (Zzt) 13 Ohm
Current - Reverse Leakage @ Vr 3μA @ 1V
Voltage - Forward (Vf) (Max) @ If 1.2V @ 200mA
Temperature Range - Operating -65°C to 200°C
Mounting Through Hole
Case / Package DO-204AL (DO-41)
Win Source Part Number 1026860-BZX85C4V3
Popularity Medium
Supply and Demand Status Limited
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian BZX85C4V3 CAD Model

Description

The Fairchild/ON Semiconductor DO-204AL (DO-41) zener diode is a high-quality component that is ideal for use in a wide range of applications.

  • Maximum Power Dissipation: 1W
  • Voltage Rating: 4.3V
  • Tolerance: ±7%
  • Forward Voltage: 1.2V @ 200mA
  • Reverse Leakage Current: 3μA @ 1V
  • Operating Temperature: -65°C to 200°C
