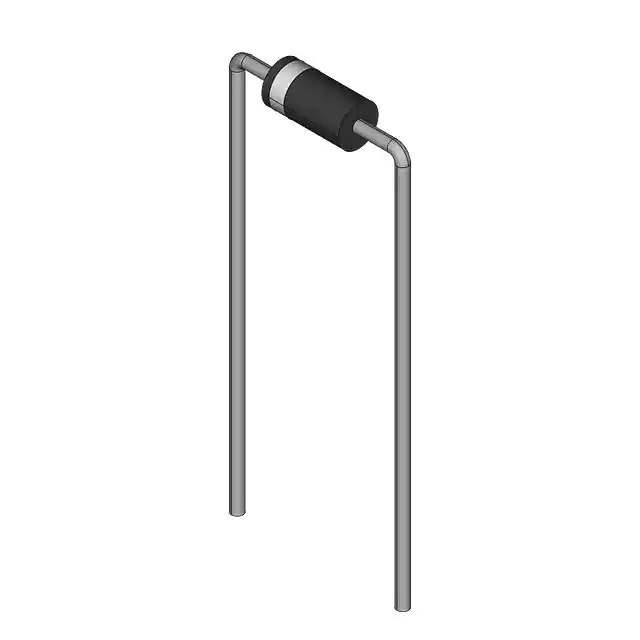

BZX85C56 Real Image
Same model may have multiple batches, images only for reference.

BZX85C56

Part No BZX85C56
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes - Zener - Single
Description DIODE ZENER 56V 1W DO204AL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr Fairchild/ON Semiconductor
Package Bulk
Product Status Obsolete
Voltage - Zener (Nom) (Vz) 56 V
Tolerance ±7%
Power - Max 1 W
Impedance (Max) (Zzt) 120 Ohms
Current - Reverse Leakage @ Vr 500 nA @ 39 V
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 200 mA
Temperature Range - Operating -65°C ~ 200°C
Mounting Type Through Hole
Package / Case DO-204AL, DO-41, Axial
Supplier Device Package DO-204AL (DO-41)
Standard Package 6,662 pcs
ECCN EAR99
HTSUS 8541.10.0050
Win Source Part Number 575509-BZX85C56
Ultra Librarian 3D Model Ultra Librarian BZX85C56 CAD Model

Description

The 575509-BZX85C56 is a single Zener diode in the DO-204AL (DO-41) axial package from Fairchild/ON Semiconductor.

  • Power Rating: 1 W
  • Voltage Tolerance: ±7%
  • Forward Voltage: 1.2 V @ a current of 200 mA
  • Reverse Leakage Current: 500 nA @ 39 V
  • Zener Voltage: 56 V with a maximum impedance of 120 Ohms
  • Mounting: Through-hole
  • Operating Temperature: -65°C to 200°C
  • Status: Obsolete
  • Package: Bulk package of 6,662 pcs
  • HTSUS Code: 8541.10.0050
