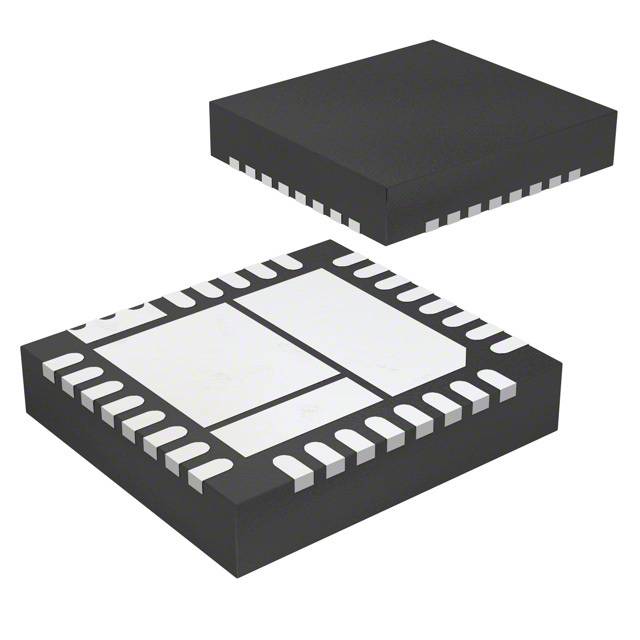

FAN23SV56MPX Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FAN23SV56MPX

Part No FAN23SV56MPX
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description IC REG BUCK ADJ 6A SYNC 34PQFN
Datasheet
FAN23SV56MPX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Not For New Designs
Purpose Step-Down
Topology Buck
Output Type Adjustable
Number of Outputs 1
Minimum Input Voltage 7V
Maximum Input Voltage 24V
Nominal Output Voltage (Min/Fixed) 0.6V
Maximum Output Voltage 5.5V
Output Current 6A
Frequency - Switching 200kHz to 1.5MHz
Synchronous Rectifier Yes
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 34-PQFN (5.5x5)
Win Source Part Number 1037585-FAN23SV56MPX
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FAN23SV56MPX CAD Model

Description

The FAN23SV56MPX is an integrated circuit step-down voltage regulator from Fairchild/ON Semiconductor.

  • Product Name: FAN23SV56MPX
  • Manufacturer: Fairchild/ON Semiconductor
  • Recommendation: Not Recommended for New Designs
  • Topology: Buck
  • Frequency Range: 200kHz to 1.5MHz
  • Rectifier: Synchronous
  • Output Current (Max): 6A
  • Output Voltage (Nominal): 0.6V
  • Output Voltage (Max): 5.5V
  • Temperature Range: -40°C to 125°C
  • Input Voltage (Max): 24V
  • Input Voltage (Min): 7V
  • Category: Integrated Circuits
