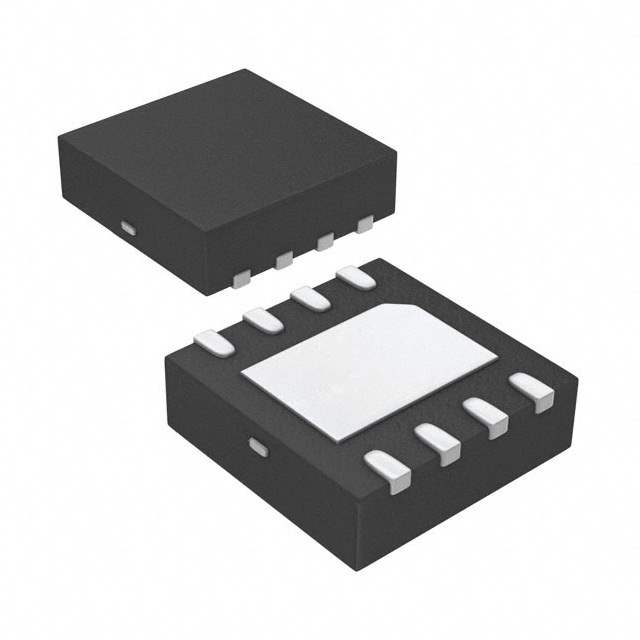

FAN3224CMPX Real Image
Same model may have multiple batches, images only for reference.

FAN3224CMPX

Part No FAN3224CMPX
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Gate Drivers
Description IC GATE DRVR DUAL NONINV 4A 8MLP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Driven Configuration Low-Side
Channel Type Independent
Number of Drivers 2
Gate Type N-Channel MOSFET
Supply Voltage - Operating 4.5 V to 18 V
Current - Peak Output (Source, Sink) 5A, 5A
Input Type Non-Inverting
Rise and Fall Time 12ns, 9ns
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-MLP (3x3)
Win Source Part Number 040227-FAN3224CMPX
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FAN3224CMPX CAD Model

Description

Product Overview

The FAN3224CMPX is built for high-speed dual-channel MOSFET driving applications, providing fast and efficient switching capabilities suited for high-performance circuits.

Features and Benefits

  • High-Speed Switching: Supports fast operation and reduced cycle times.
  • Dual Channel Support: Facilitates multi-path control.
  • Compact Design: Enables easy integration in space-constrained solutions.
  • Excellent Thermal Performance: Improves reliability and lifespan.

Applications

  • Power Inverters
  • Wireless Charging Stations
  • High-Frequency DC-DC Converters
  • Power Amplifiers
