Same model may have multiple batches, images only for reference.

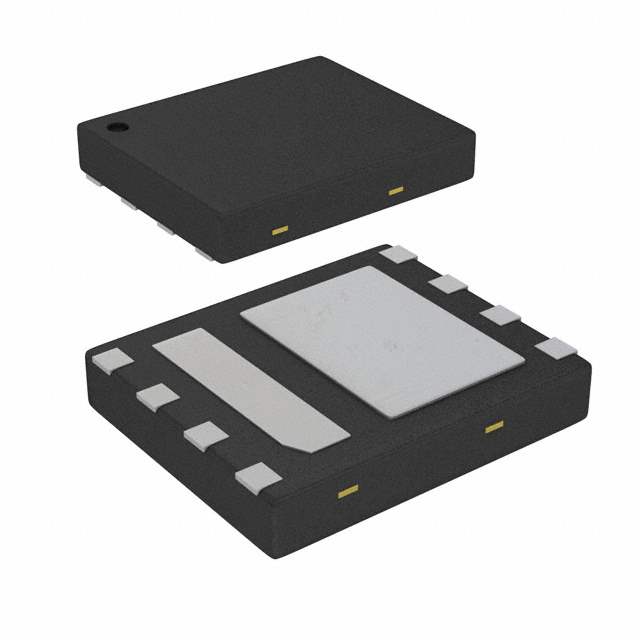

FDMS2734 Real Image
Same model may have multiple batches, images only for reference.

FDMS2734

Part No FDMS2734
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 250V 2.8A POWER56
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 250V
Continuous Drain Current at 25°C 2.8A (Ta), 14A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 6V, 10V
Gate-Source Threshold Voltage 4V @ 250μA
Max Gate Charge 42nC @ 10V
Max Input Capacitance 2365pF @ 100V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.5W (Ta), 78W (Tc)
Maximum Rds On at Id,Vgs 122 mOhm @ 2.8A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package Power56
Dimension 8-PowerWDFN
Win Source Part Number 137580-FDMS2734
Popularity Medium
Supply and Demand Status Limited
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDMS2734 CAD Model

Description

The FDMS2734 is an N-channel MOSFET from Fairchild/ON Semiconductor designed for discrete semiconductor products.

  • Power Dissipation: 2.5W (Ta), 78W (Tc)
  • Drain-Source Breakdown Voltage: 250V
  • Continuous Drain Current: 2.8A (Ta), 14A (Tc) @ 25°C
  • Rds On (Max): 122 mOhm @ 2.8A, 10V
  • Gate-Source Threshold Voltage: 4V @ 250μA
  • Gate Charge (Max): 42nC @ 10V
  • Input Capacitance (Max): 2365pF @ 100V
  • Package: 8-PowerWDFN
  • Gate-Source Voltage (Max): ±20V
  • Supply and Demand: Limited
  • Packaging: 3k pcs
