Same model may have multiple batches, images only for reference.

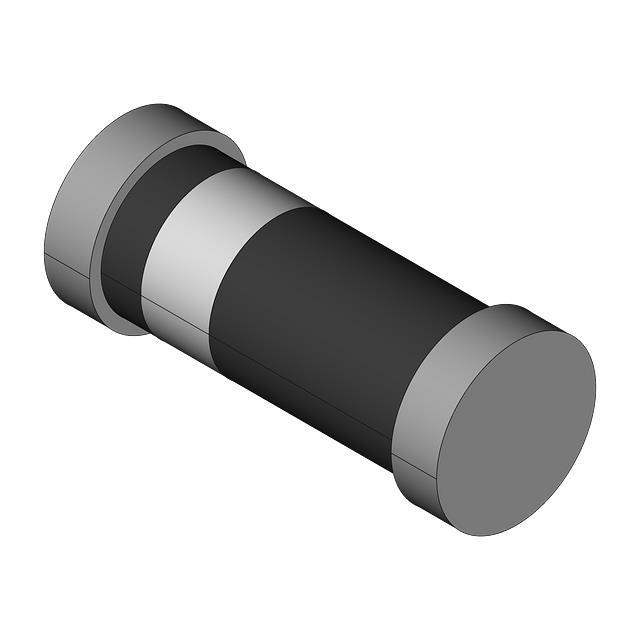

FLZ20VA Real Image
Same model may have multiple batches, images only for reference.

FLZ20VA

Part No FLZ20VA
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes - Zener - Single
Description DIODE ZENER 18.5V 500MW SOD80
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Voltage - Zener (Nom) (Vz) 18.5V
Tolerance ±3%
Maximum Power Dissipation 500mW
Impedance (Max) (Zzt) 23.5 Ohm
Current - Reverse Leakage @ Vr 133nA @ 15V
Voltage - Forward (Vf) (Max) @ If 1.2V @ 200mA
Temperature Range - Operating -65°C to 175°C
Mounting SMD (SMT)
Case / Package SOD-80
Win Source Part Number 097587-FLZ20VA
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian FLZ20VA CAD Model

Description

The Fairchild/ON Semiconductor FLZ20VA is a zener diode with a nominal voltage of 18.5V. It has a maximum power dissipation of 500mW and is packaged in a SOD-80 case.

  • Tolerance: ±3%
  • Forward Voltage: 1.2V @ 200mA
  • Reverse Leakage Current: 133nA @ 15V
  • Impedance: 23.5 Ohm
  • Supply and Demand: Sufficient
