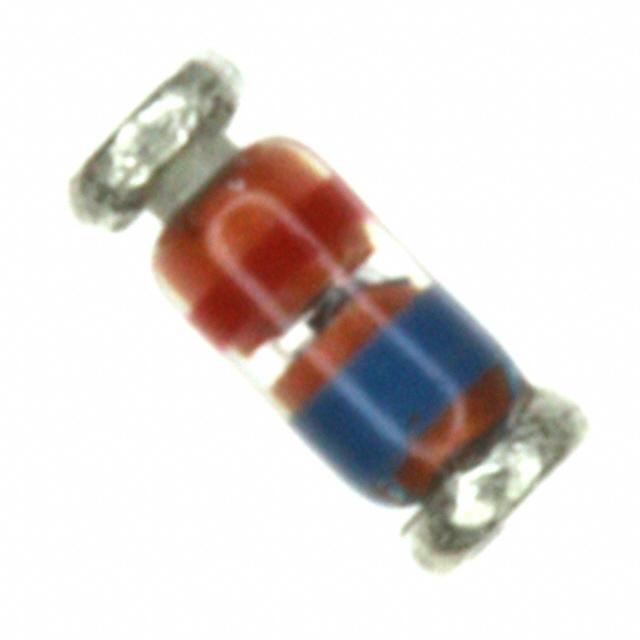

Same model may have multiple batches, images only for reference.
FLZ39VA Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FLZ39VA

Part No FLZ39VA
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes - Zener - Single
Description DIODE ZENER 35.6V 500MW SOD80
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Voltage - Zener (Nom) (Vz) 35.6V
Tolerance ±3%
Maximum Power Dissipation 500mW
Impedance (Max) (Zzt) 72 Ohm
Current - Reverse Leakage @ Vr 133nA @ 30V
Voltage - Forward (Vf) (Max) @ If 1.2V @ 200mA
Temperature Range - Operating -65°C to 175°C
Mounting SMD (SMT)
Case / Package SOD-80
Win Source Part Number 099544-FLZ39VA
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian FLZ39VA CAD Model

Description

The Fairchild/ON Semiconductor 099544-FLZ39VA is a zener diode with the following properties:

  • Mounting: SMD (SMT)
  • Zener Voltage: 35.6V
  • Maximum Impedance: 72 Ohm
  • Package: SOD-80
  • Category: Discrete Semiconductor Product
  • Temperature Range: -65°C to 175°C
  • Supply/Demand: Sufficient
